| RK3588 Module | |||||||
| SOC | RockChip RK3588 | ||||||

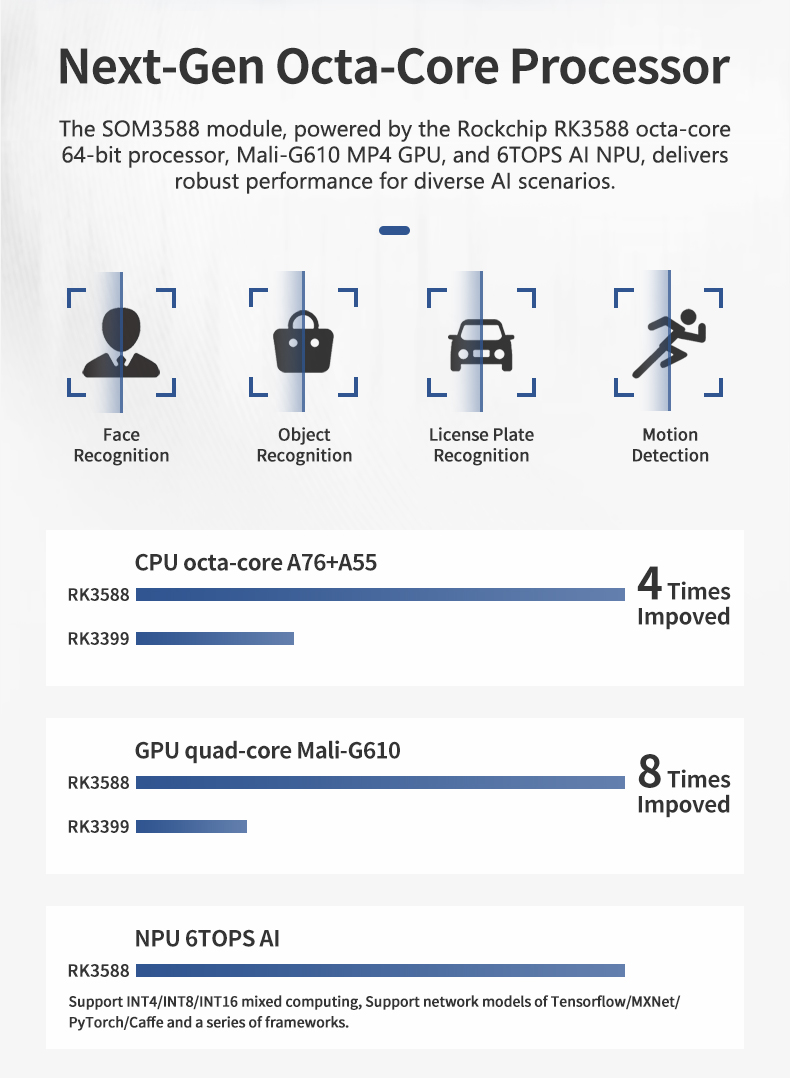

| CPU | ARM Cortex 8-core 64-bit (4xA76 + 4xA55) processor, 8nm process technology, maximum clock speed: 2.4GHz | ||||||
| GPU | ARM Mali-G610 MC4 GPU | ||||||
| NPU | It features a triple-core architecture and supports INT4/INT8/INT16/FP16/BF16/TF32 | ||||||
| ISP | Integrated 48MP ISP with HDR&3DNR | ||||||
| AI Performance | 6 TOPS | ||||||
| Memory | 4G/8G/16G-Byte 64bit LPDDR4/4X, LPDDR5 supports up to 32G | ||||||
| Storage | Optional 16G/32G/64G/128G) with a maximum of 256G Byte EMMC | ||||||
| Video decoding | 8K@60fps H.265/VP9/AVS2 8K@30fps H.264 AVC/MVC 4K@60fps AV1 1080P@60fps MPEG-2/-1/VC-1/VP8 | ||||||
| Video encoding | 8K@30fps encoding, supporting H.265 / H.264 | ||||||
| Video Output | 2eDP interfaces: support eDP 1.3 (4K@60Hz) 2DP interfaces: support eDP 1.4 (8K@30fps, multiplexed with USB 3.0) 1BT1120 interface: (1080@60fps) 2MIPI DSI interfaces: (4K@60Hz) 1HDMI 2.0 interface: (4K@60fps) support for HDMI 1.4 and HDMI 2.0; 1HDMI 2.1 interface: (8K@60fps or 4K@120fps) Support dual-screen different display function. | ||||||
| Video Input | 1HDMI-IN interface: (4K@60fps), support HDCP 2.3 1MIPI CSI (4 Lane) or 2×MIPI CSI (2 Lane) 2MIPI DC (4-channel DPHY v2.0 or 3-channel CPHY V1.1) 1DVP camera interface (maximum 150MHz input data) | ||||||
| USB | 3*USB3.0 HOST super-speed, support up to 8.48Gbps bandwidth; 4*USB2.0 HOST High-speed, up to 480Mbps 2*USB2.0 OTG | ||||||
| Audio | 2*8-channel I2S 2*2-channel I2S 2*SPD IF 2*8-channel PDM (support multi-MIC array) 1*Dual-channel digital audio codec (16-bit DAC) 1*VAD | ||||||
| Ethernet | Integrated PCIe3.0/GMAC/USB3.0, can expand multi-channel Gigabit (1G) or 2.5G Ethernet | ||||||
| WIFI/Bluetooth | Support 2.4+5GHz WiFi6, support Wi-Fi 802.11b/g/n/ac protocols | ||||||
| Wireless Network | 4G LTE/5G (expanded via USB2.0 or USB3.0) | ||||||
| PCIE | PCIe3.0 (2*2lanes, 1*4lanes, 4*1lanes); 3*PCIe2.0 (1 lane) | ||||||
| SATA | 3*SATA3.0 | ||||||
| Power Supply | +4V (voltage tolerance ±5%) | ||||||

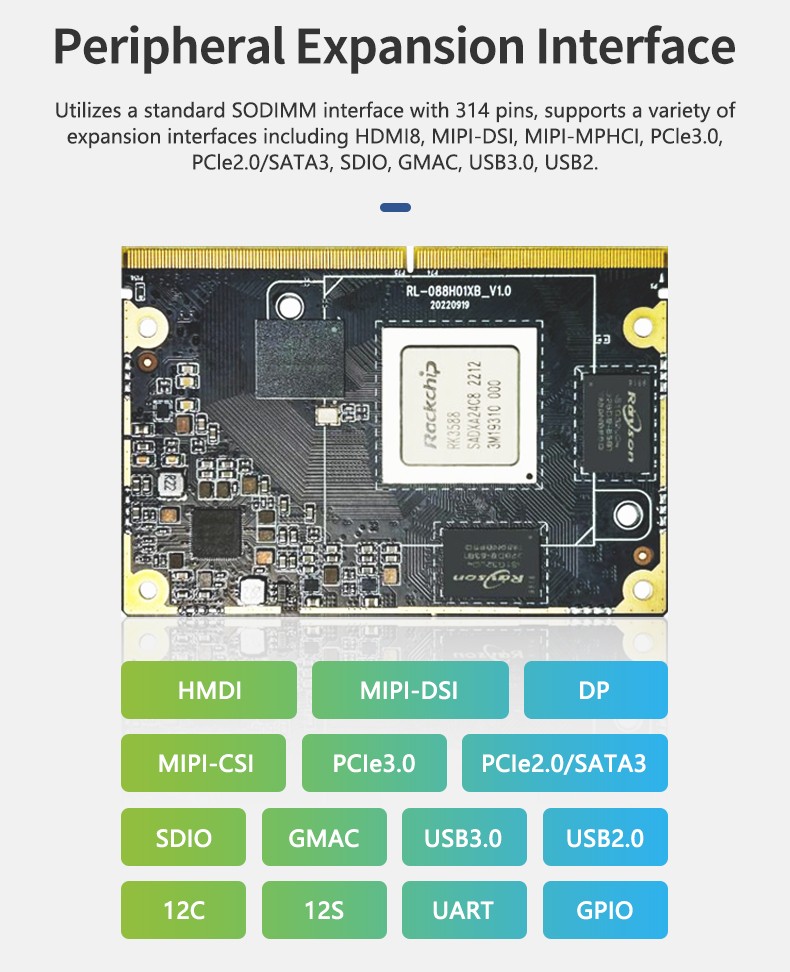

| IO Ports | 9I2C, 10UART, 5SPI, 7ADC, 16PWM; 1*SDMMC, GPIO | ||||||

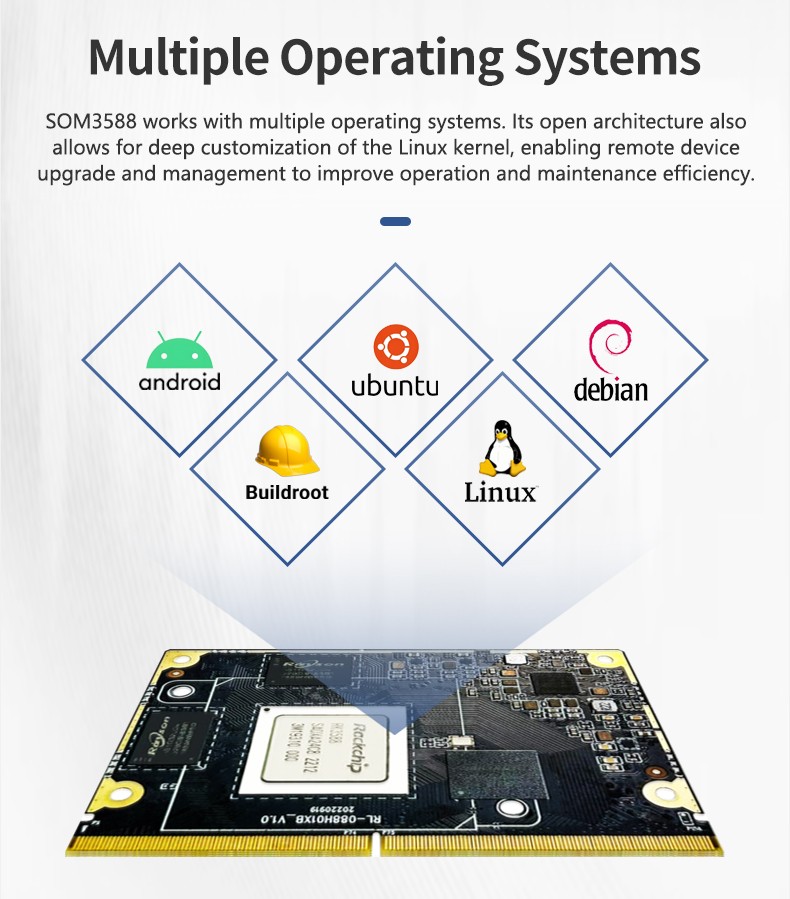

| Operating System | Android 12, Ubuntu 18.04/20.04, Buildroot, Debian | ||||||
| Audio Formats | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP, etc | ||||||
| Images | Support JPG, BMP, PNG and other image formats for browsing, with rotation/slideshow/zoom functions | ||||||
| Built-in Apps | APK installer, email, calculator, browser, voice recorder, calendar, settings, clock, video player, search, contacts, download, camera, music player, file manager, etc. | ||||||
| Languages | Multi-language support (Chinese, English, etc.) | ||||||
| System Management | Native Android system with root access for customization; | ||||||

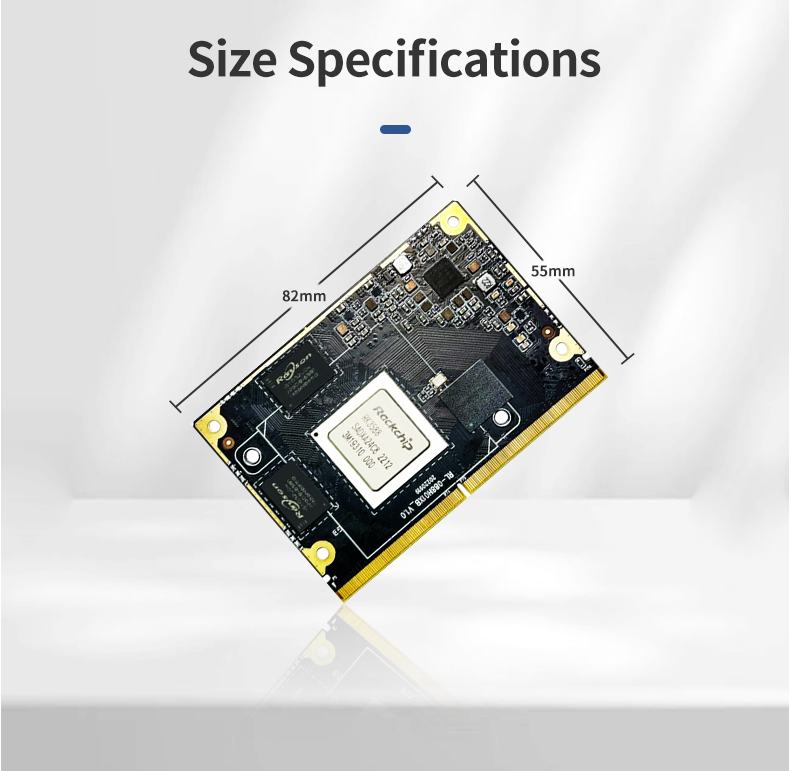

| Dimensions | 82mmx55mm | ||||||
| Power Consumption | 20W | ||||||
