Jetson Orin NX Nano (ZSD500E)

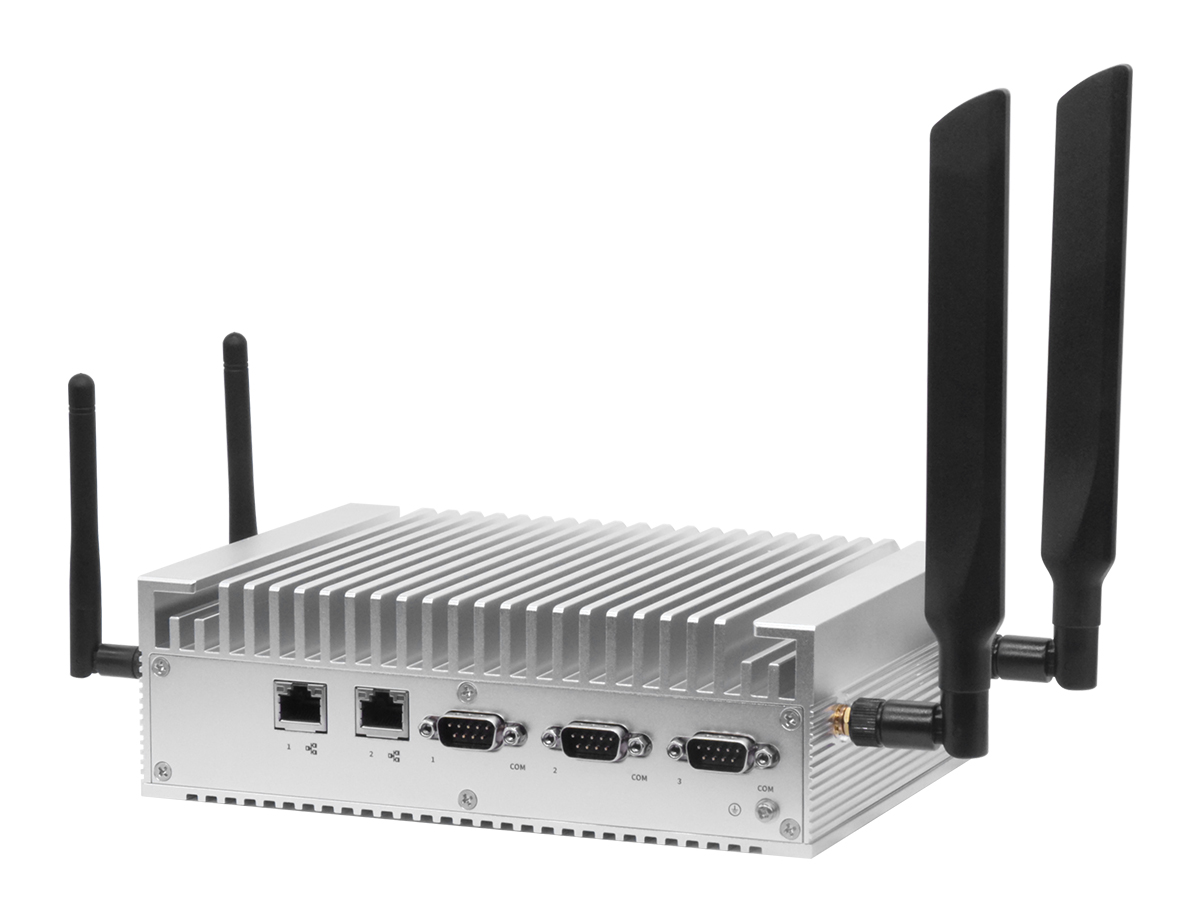

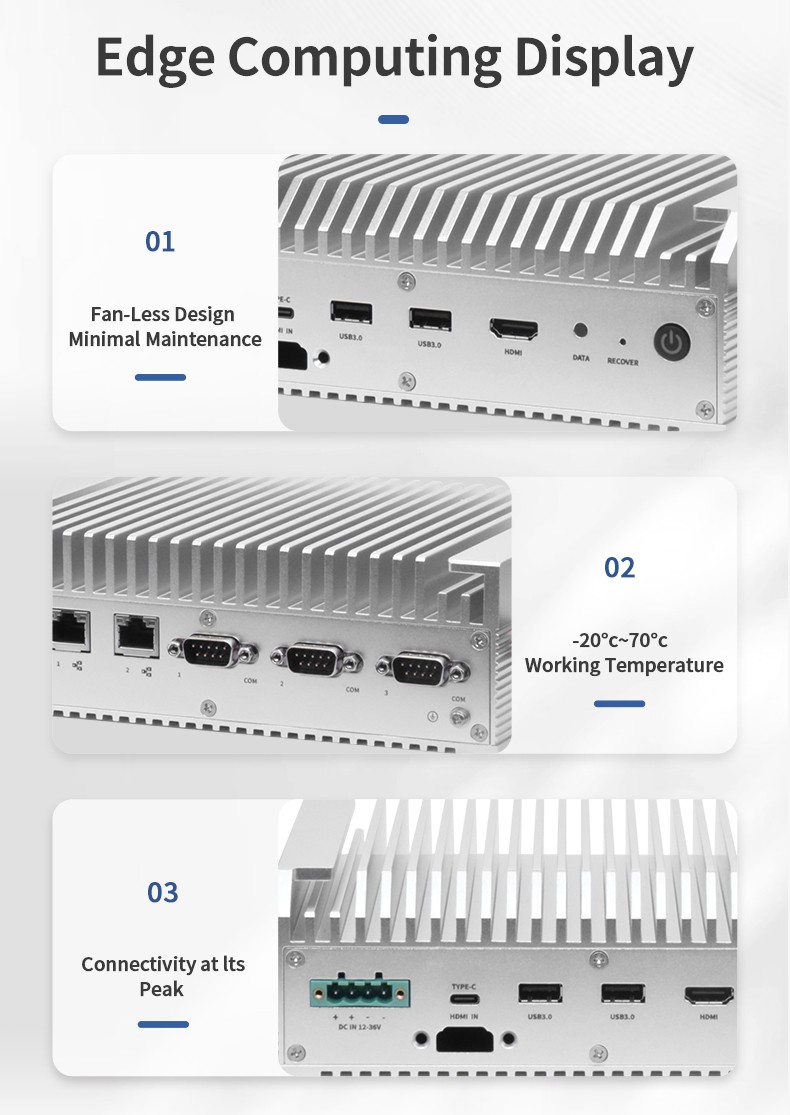

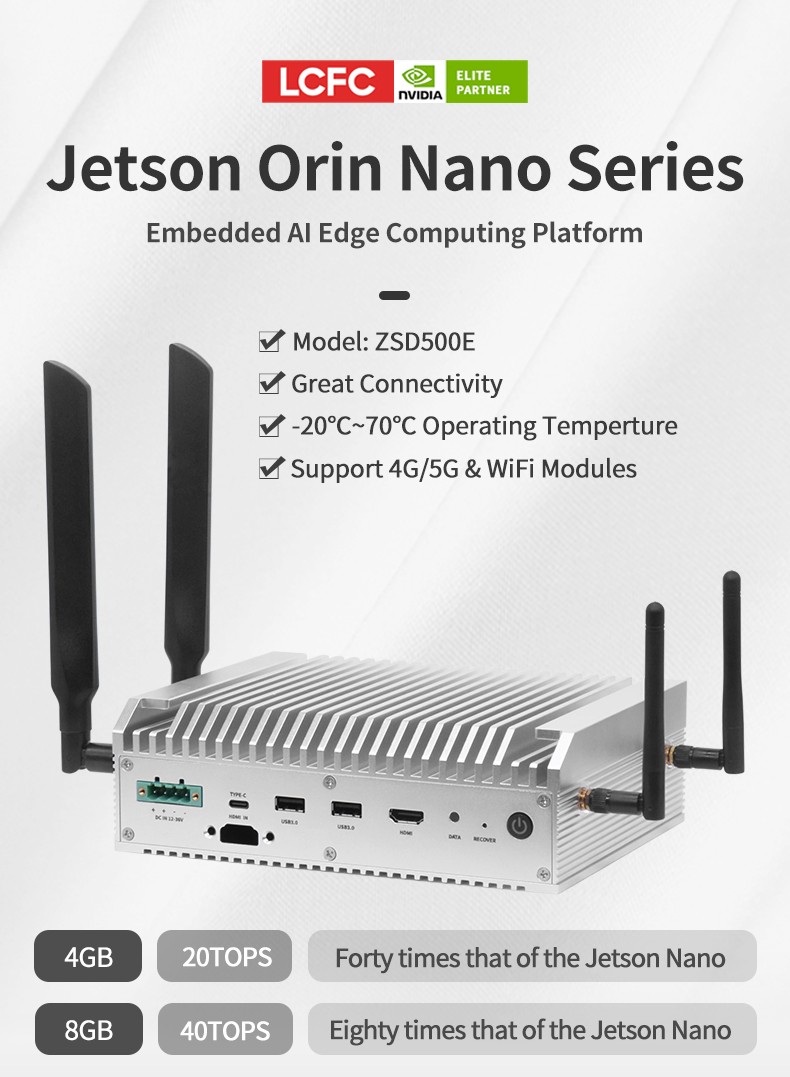

The ZSD500E, powered by NVIDIA Jetson Orin Nano, has a 6-core ARM v8.2 64-bit CPU and NVIDIA Ampere GPU (1024 CUDA cores), delivering up to 40 TOPS real-time inference and supporting various neural network models. It features a fanless embedded design for diverse industrial environments (extreme temps, rigorous conditions), with rich peripheral interfaces and expansion options (for sensors, 4G/5G/WIFI). Ideal for vehicle-road collaboration, robotic inspections, smart security and intelligent retail, it provides advanced edge AI capabilities.

Technical Reference

Product Details

Accessories

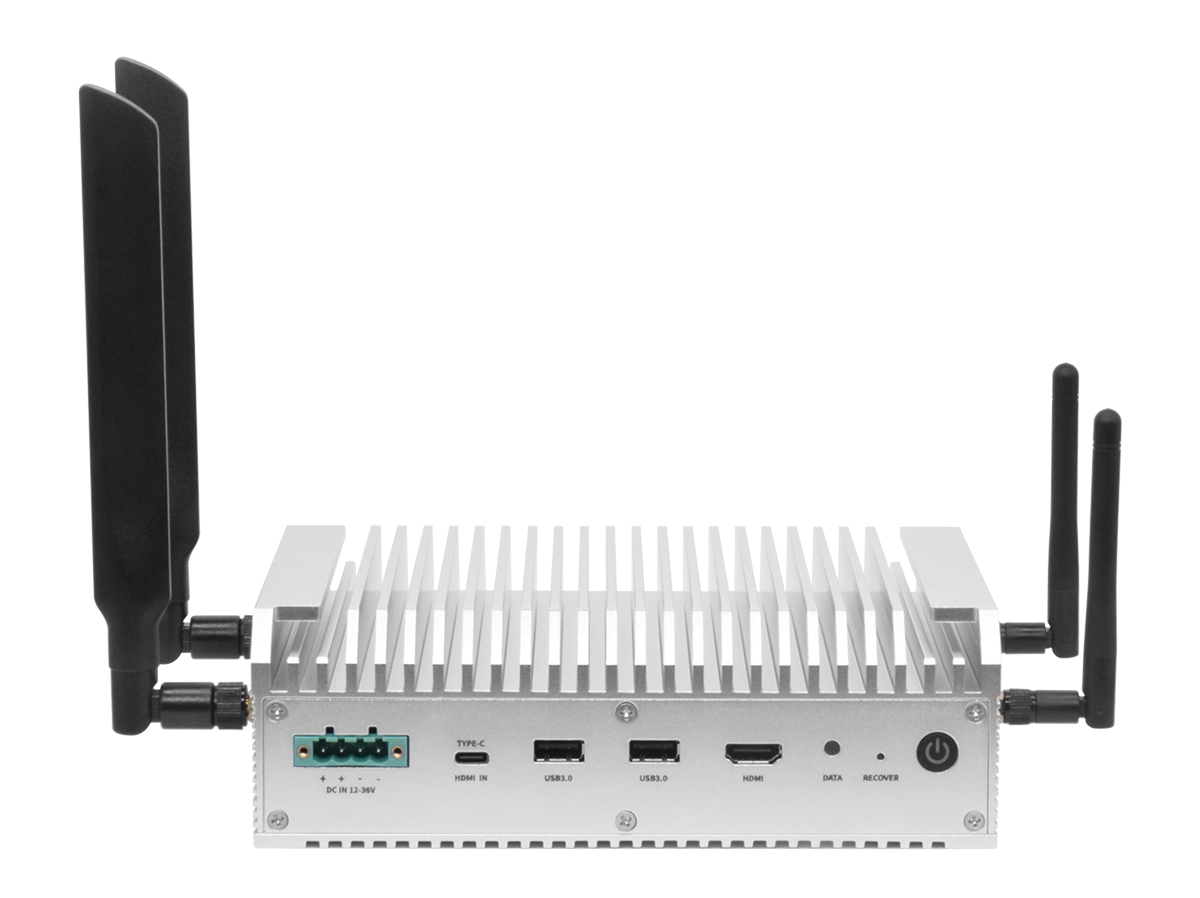

Jetson Orin Nano (ZSD500E)
ProjectDescribe
ProcessorNVIDIA Jetson Orin Nano 4/8GB
AI Performance20/40 Tops (sparse) INT8
CPU6-core Arm® Cortex®-A78AE v8.2 64-bit CPU, 1.5MB L2 + 4MB L3
GPU512/1024 NVIDIA® CUDA® Core & 32 Tensor Cores
GPU Max Frequency625MHz
Memory4GB 64-bit LPDDR5, 34GB/s；8GB 128-bit LPDDR5, 68GB/s；
Storage DeviceM.2 2280 M-KEY x1
2.5" SATA Drive Bay x1
DisplayHDMI 2.0 x1

I/O

Configuration

USB 3.0 Type-A x2
Gigabit Ethernet x2
CAN x1 (DB9)
RS232/422/485 x2 (DB9)
DIO x8 (optional, DI x4 + DO x4)
GMSL x4 (optional)
1GBE POE x4 (optional, 802.3at)
Antenna x4 (optional)
USB 2.0 Type-C (for firmware update)
ExpansionM.2 2230 E-KEY x1 (for WiFi)
M.2 3052 B-KEY x1 (for 4G/5G)
Nano SIM Socket x1
2.5” SATA Drive Bay x1
M.2 2280 M-KEY x1
Function KeyPower Button x1
Recovery Button x1
IndicatorStorage LED x1
Power LED x1
Power SupplyDC 9-36V Power Adapter
Power Type: Terminal Block 4PIN x1
Vibration3 Grms 5~500Hz

Operating

Temperature

-20°C ~ 70°C (60~70℃ slowdown)
-40°C ~ 70°C (optional)

Storage

Temperature

-40°C ~ 70°C
Humidity5~95% @ 40°C, non-condensing
ProtectionIP50
DimensionsTBD
CertificatesCCC

Previous: 无

Next: Jetson Orin NX Box (ZSD500)

APPLICATION

Intelligent terminals are a type of embedded computer system equipment equipped with NVIDIAJetson series core modules, which have the characteristics of small size, high performance, low power consumption, and strong stability.
