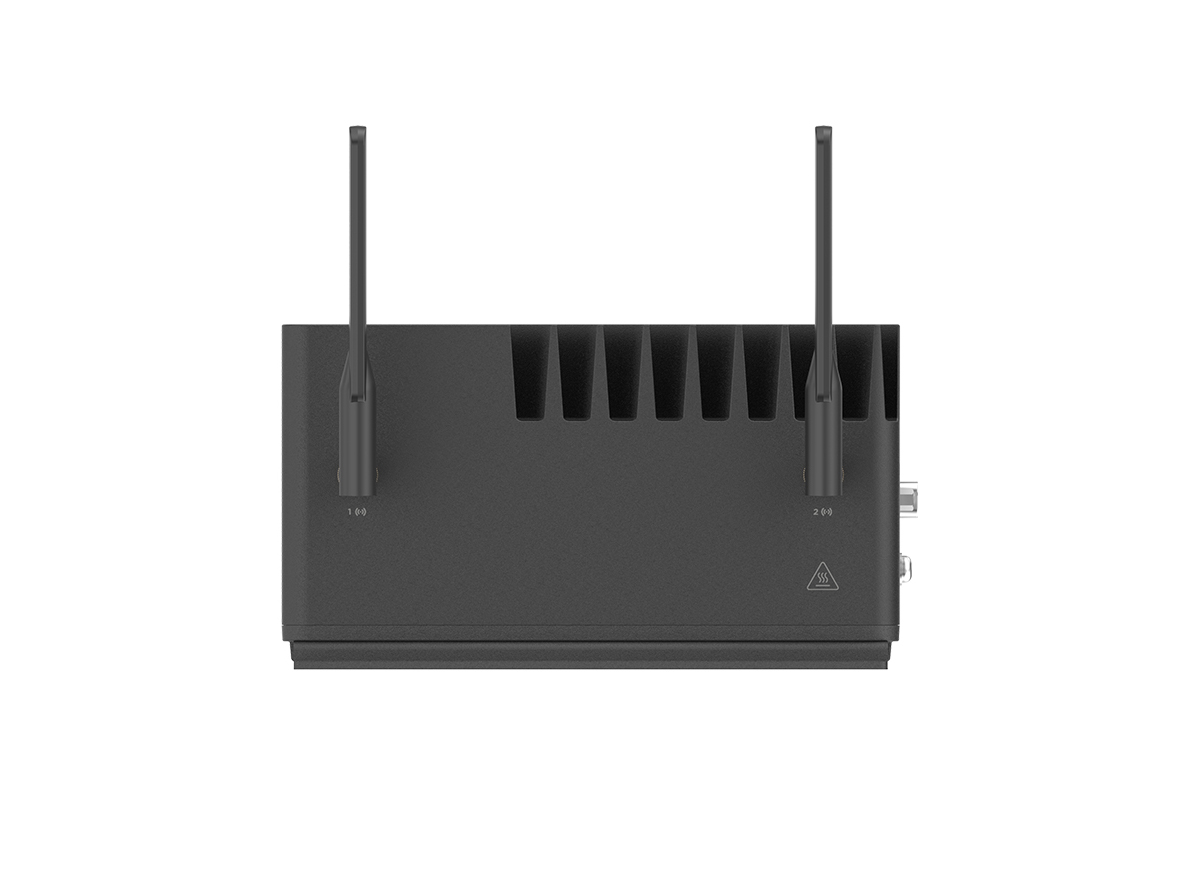

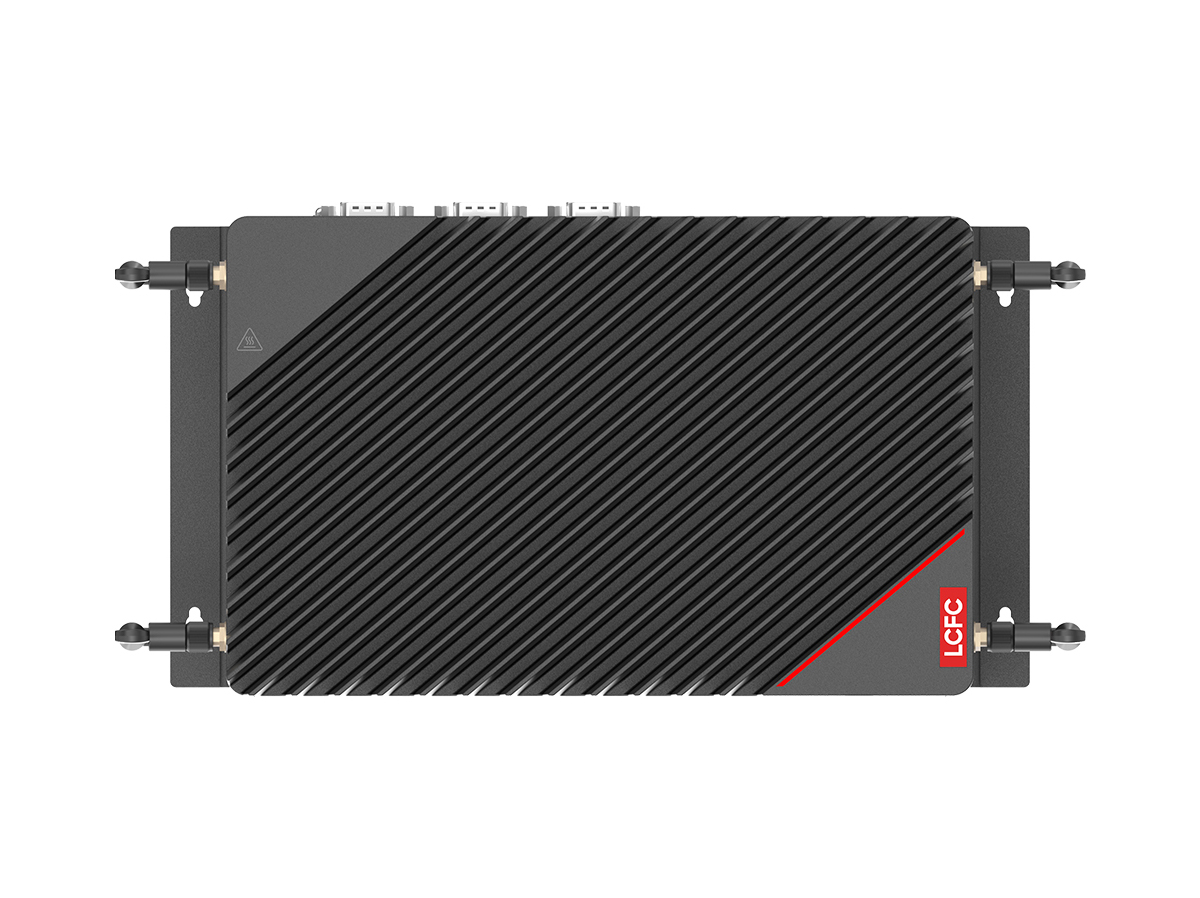

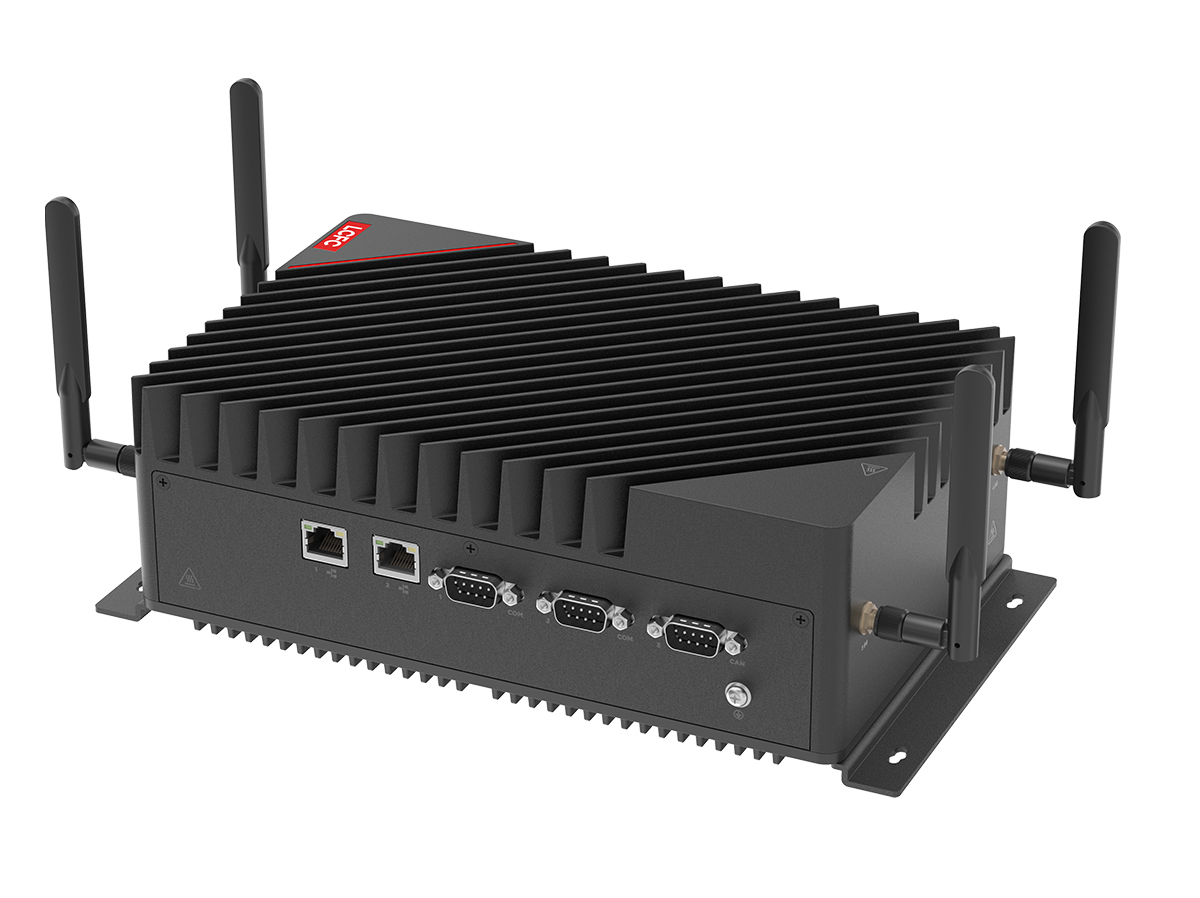

Jetson Orin NX BOX

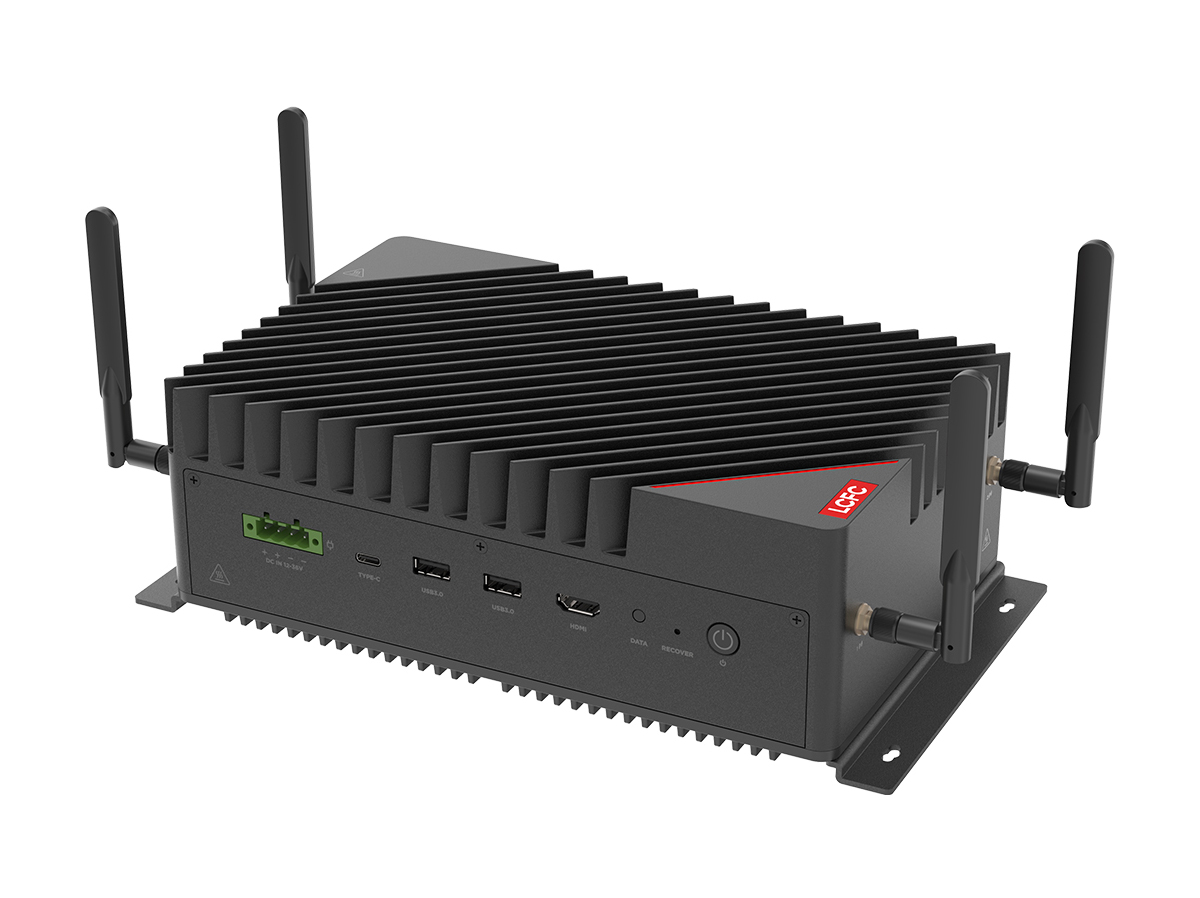

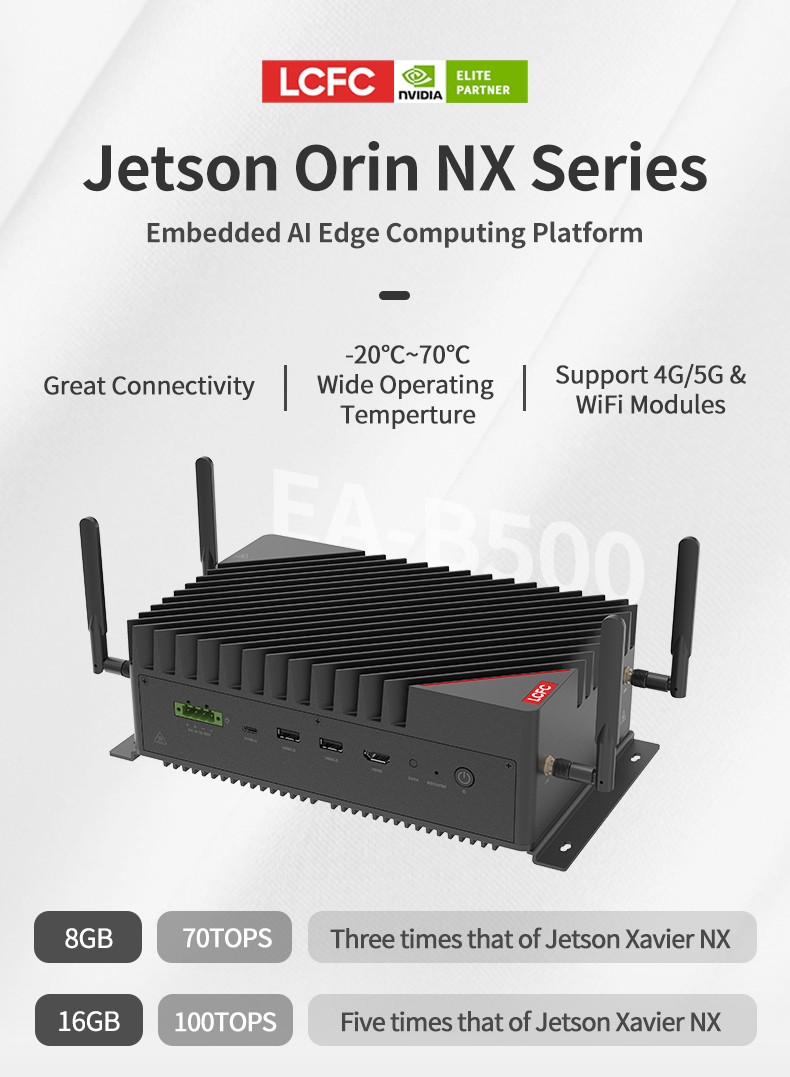

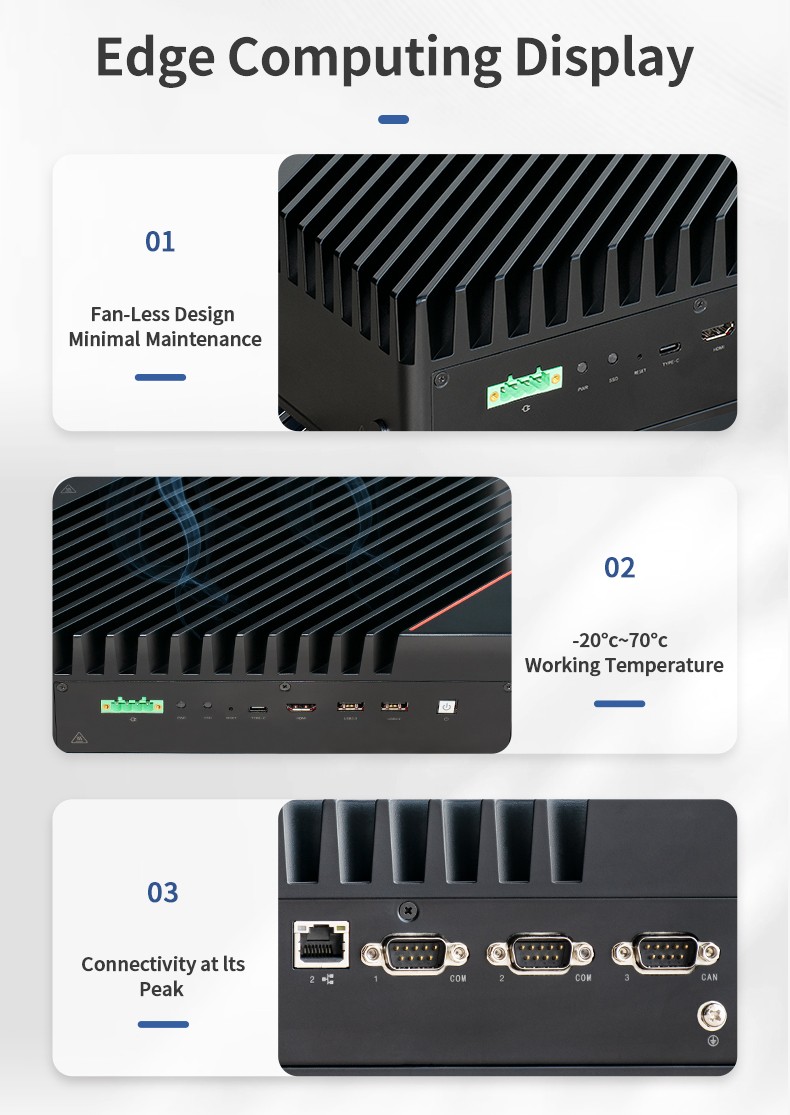

The EA-B500, powered by the NVIDIA Jetson Orin NX core module, has an 8-core ARM v8.2 64-bit CPU, an NVIDIA Ampere GPU (1024 CUDA cores, 2 DLAs), offers up to 100 TOPS real-time inference (compatible with major neural network models). It features a rugged, fanless industrial design for wide temperature ranges, plus rich interfaces and 4G/5G/WiFi expansion. Ideal for vehicle-road collaboration, inspection robots, smart security and retail, it delivers high-performance AI computing, integrates seamlessly into industrial scenarios, and is reliable for next-gen applications.

Technical Reference

Product Details

Accessories

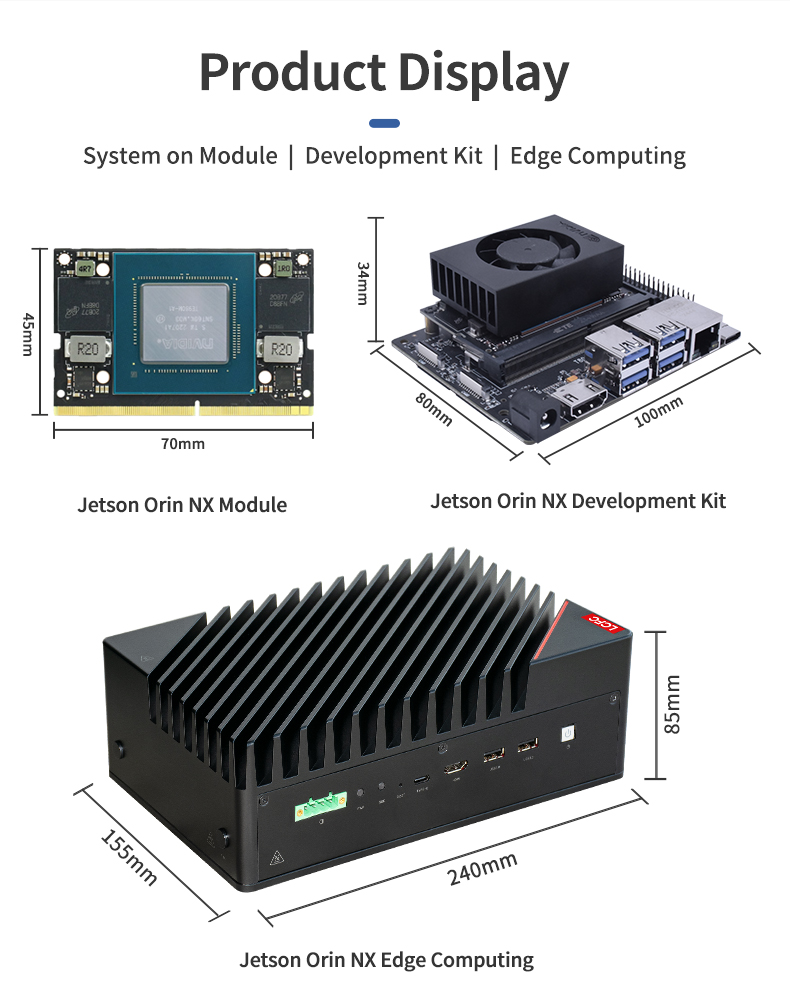

Jetson Orin NX (EA-B500)
ProjectDescribe
ProcessorNVIDIA Jetson Orin NX 16GB
AI Performance100 Tops (sparse INT8)
CPU8-core Arm® Cortex®-A78AE v8.2 64-bit CPU, 2MB L2 + 4MB L3
GPU1024 NVIDIA® CUDA® Cores & 32 Tensor Cores
AI Accelerator2x NVDLA (Max Operating Frequency: 614 MHz, 20 TOPS each (Sparse INT8))
Memory16GB 128-bit LPDDR5 DRAM
Storage DeviceM.2 2280 M-KEY x1
2.5" SATA Drive Bay x1
DisplayHDMI 2.0 x1

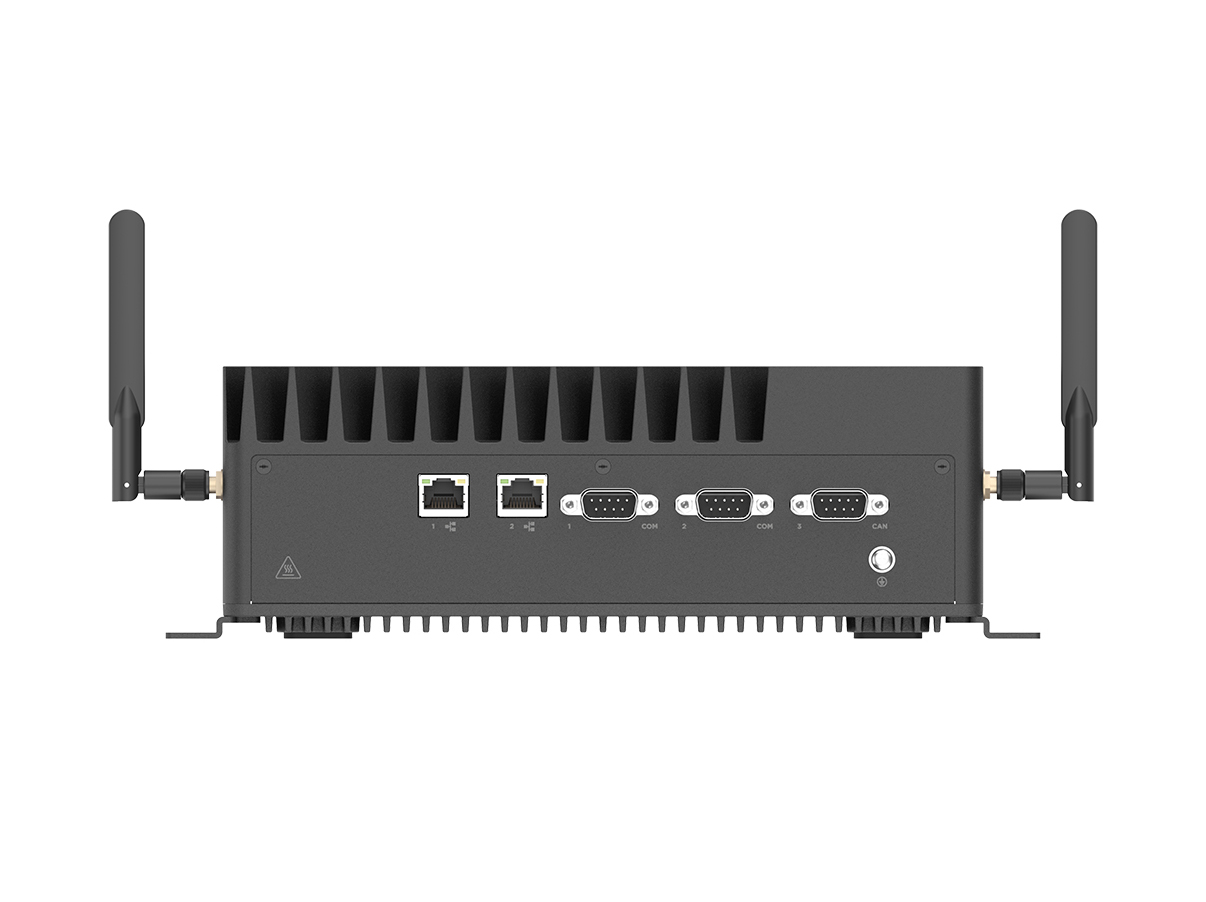

I/O ConfigurationUSB 3.0 Type-A x2
Gigabit Ethernet x2
CAN x1 (DB9)
RS232/422/485 x2 (DB9)
DIO x8 (optional, DI x4 + DO x4)
GMSL x4 (optional)
1GBE POE x4 (optional, 802.3at)
Antenna x4 (optional)
USB 2.0 Type-C (for firmware update)
ExpansionM.2 2230 E-KEY x1 (for WiFi)
M.2 3052 B-KEY x1 (for 4G/5G)
Nano SIM Socket x1
2.5” SATA Drive Bay x1
M.2 2280 M-KEY x1
Function KeyPower Button x1
Recovery Button x1
IndicatorStorage LED x1
Power LED x1
Power SupplyDC 9-36V Power Adapter
Power Type: Terminal Block 4PIN x1
Vibration3 Grms 5~500Hz
Operating Temperature-20°C ~ 70°C (60~70℃ slowdown)
-40°C ~ 70°C (optional)
Storage Temperature-40°C ~ 70°C
Humidity5~95% @ 40°C, non-condensing
ProtectionIP50
CertificatesCCC


Previous: Jetson Thor

Next: Jetson Orin Nano BOX

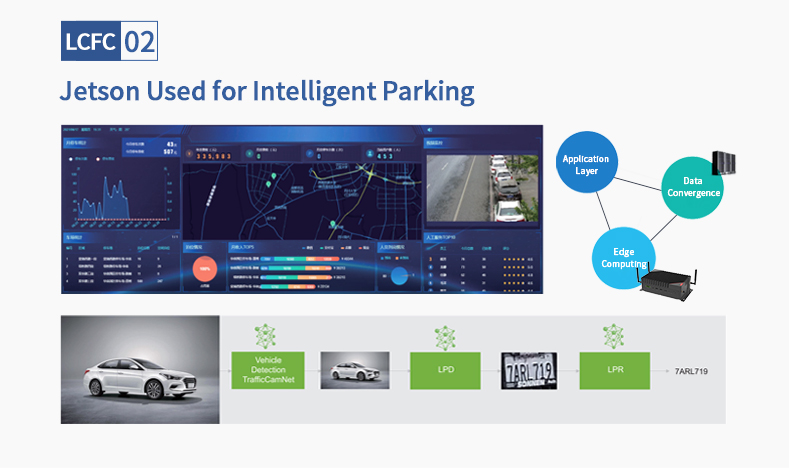

APPLICATION

Intelligent terminals are a type of embedded computer system equipment equipped with NVIDIAJetson series core modules, which have the characteristics of small size, high performance, low power consumption, and strong stability.
