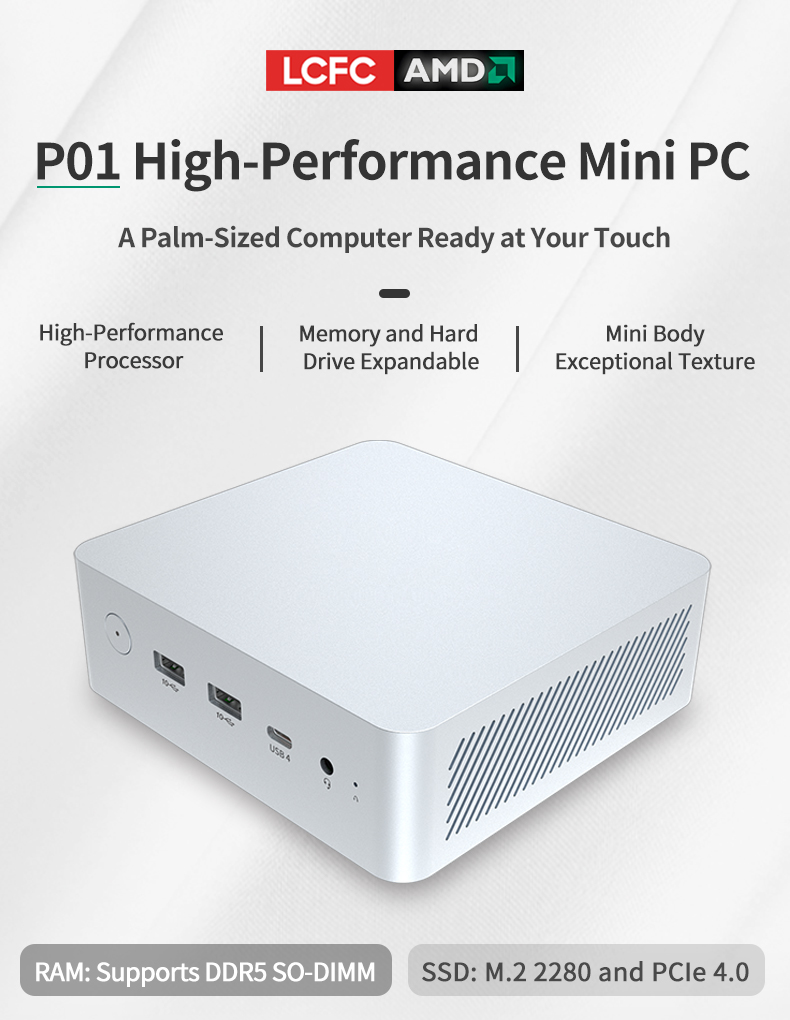

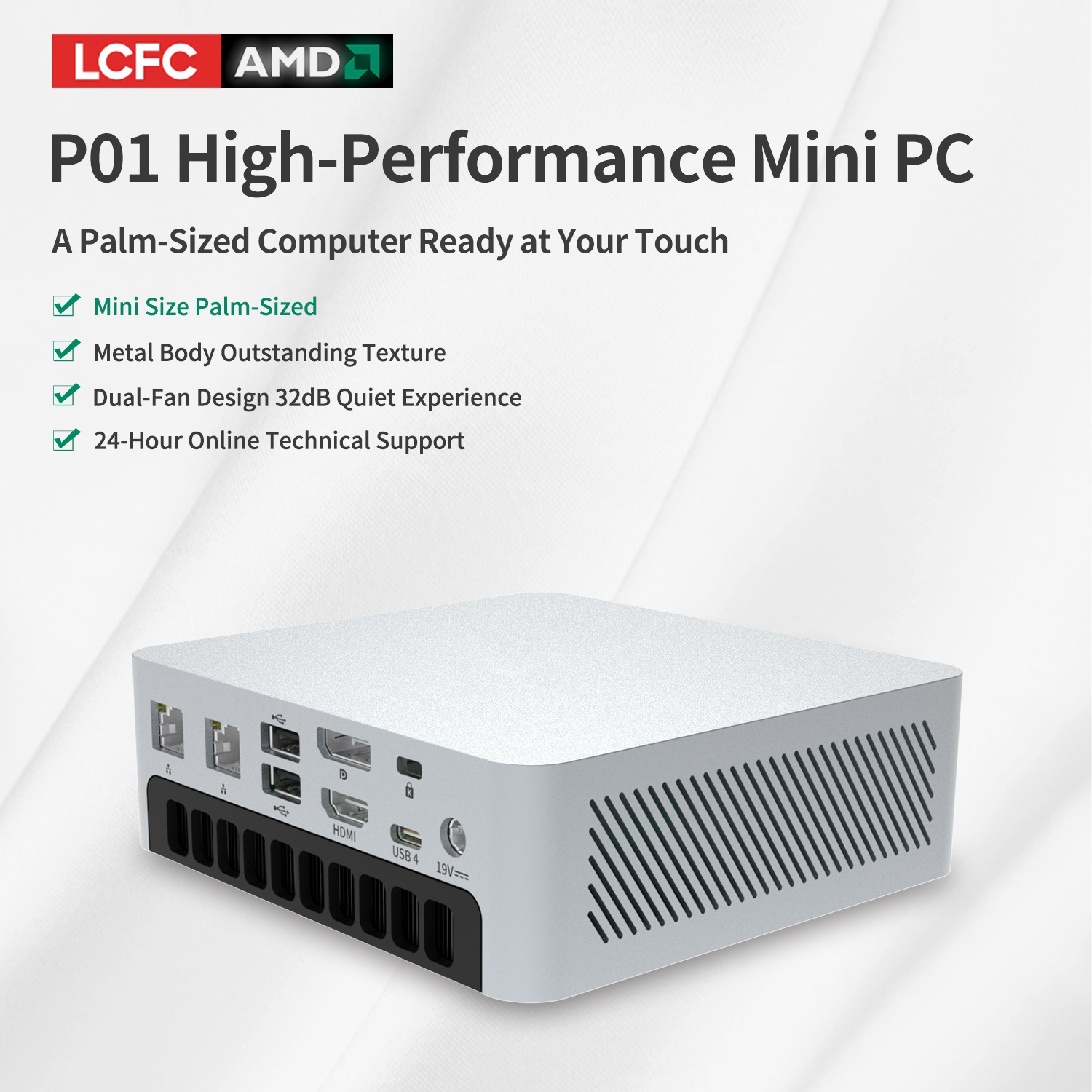

LCFC-P01 High-Performance Mini PC

LCFC-P01 is constructed with plastic material, offering excellent portability. Equipped with an AMD FP8-H CPU and 890M integrated graphics, along with 2 DDR5 memory modules and 2 PCIe4.0 SSDs, it delivers robust performance, efficiently handling multitasking and large-scale software. Featuring a rich interface configuration including USB4.0, HDMI2.1, etc., it supports 2.5G Ethernet, WiFi 6, and Bluetooth 5.2. The dual-fan cooling system ensures stable operation. Compatible with Windows 11/Linux systems, it allows BIOS customization and multi-language adaptation, suitable for office work, entertainment, professional design, and other scenarios. Its core advantages lie in high performance, diverse interfaces, stable heat dissipation, and flexible customization.

Technical Reference

Product Details

Accessories

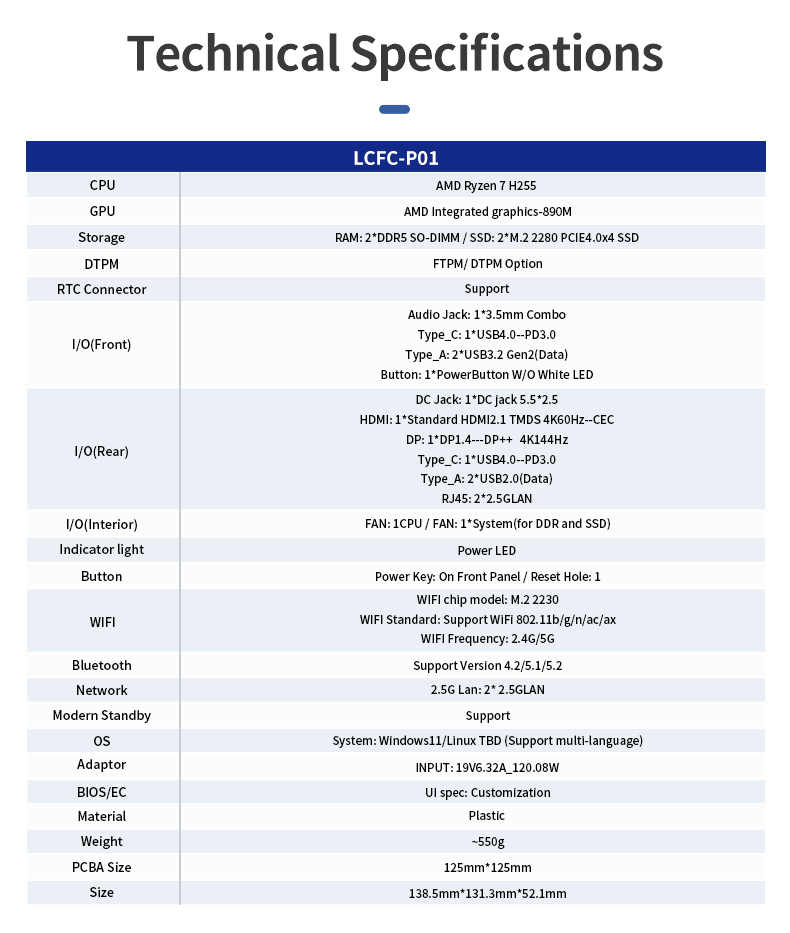

LCFC-P01 High-Performance Mini PC
ProjectDescribe
CPUAMD Ryzen 7 H255
GPUAMD Integrated graphics-890M

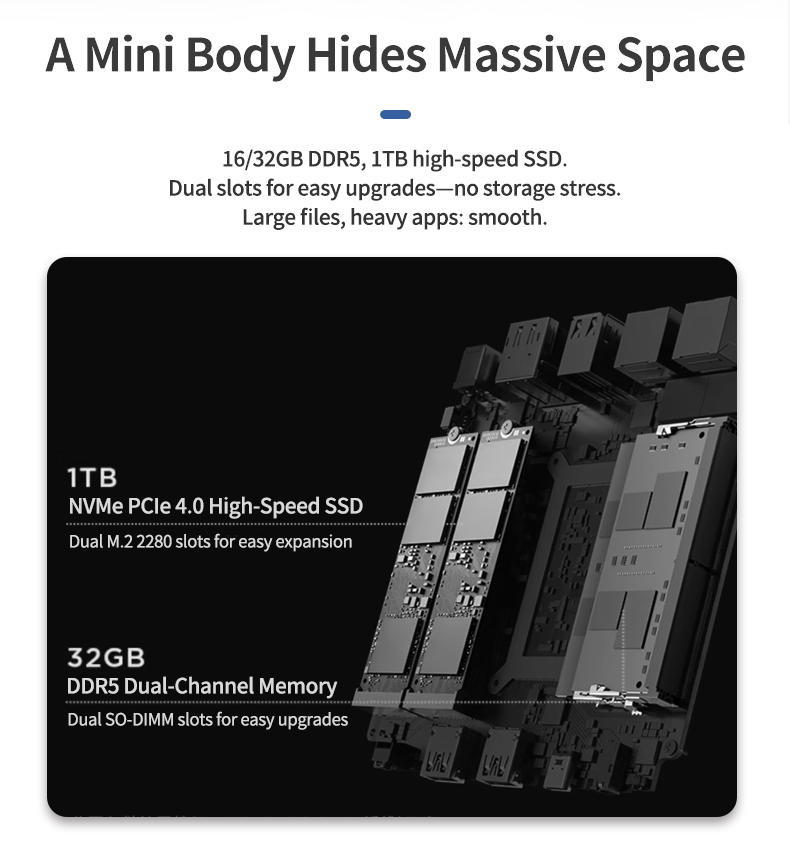

StorageRAM: 2*DDR5 SO-DIMM /SSD: 2*M.2 2280 PCIE4.0x4 SSD
DTPMFTPM/ DTPM Option
RTC ConnectorSupport

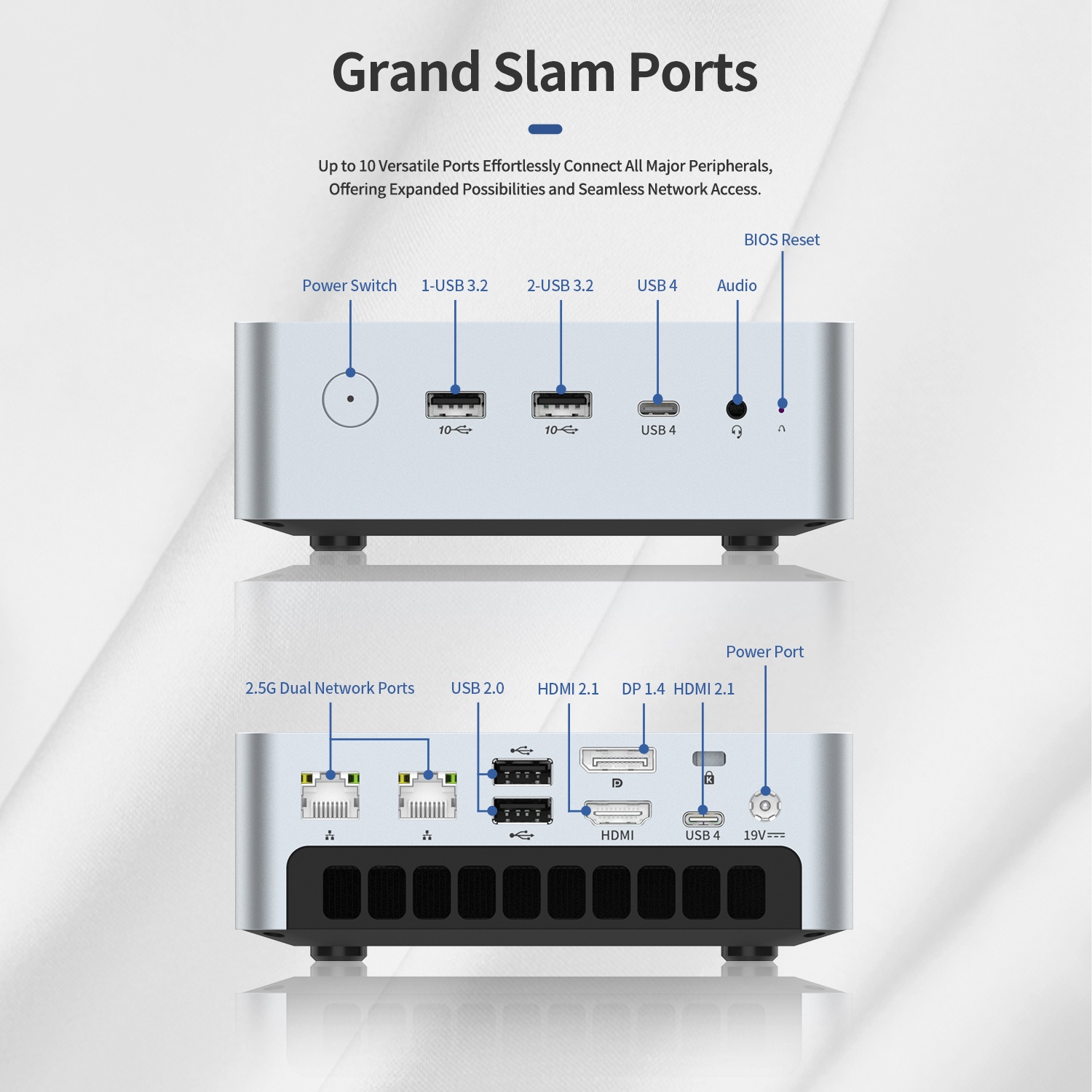

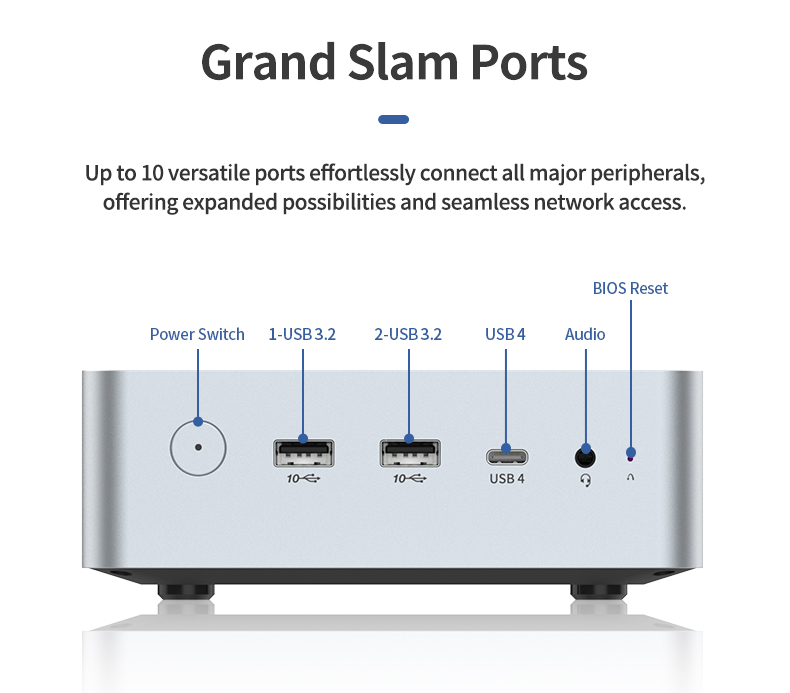

I/O(Front)Audio Jack: 1*3.5mm Combo
Type_C:1*USB4.0--PD3.0
Type_A: 2*USB3.2 Gen2(Data)
Button:1*PowerButton W/O White LED

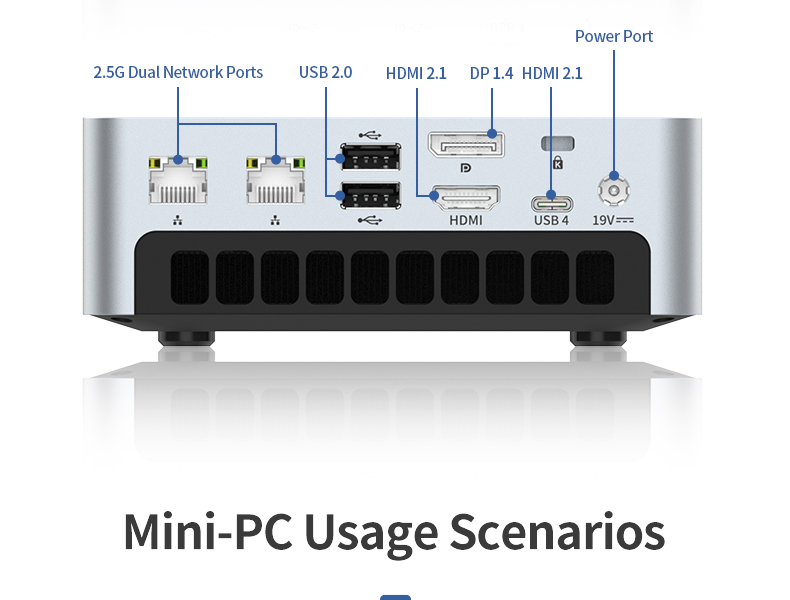

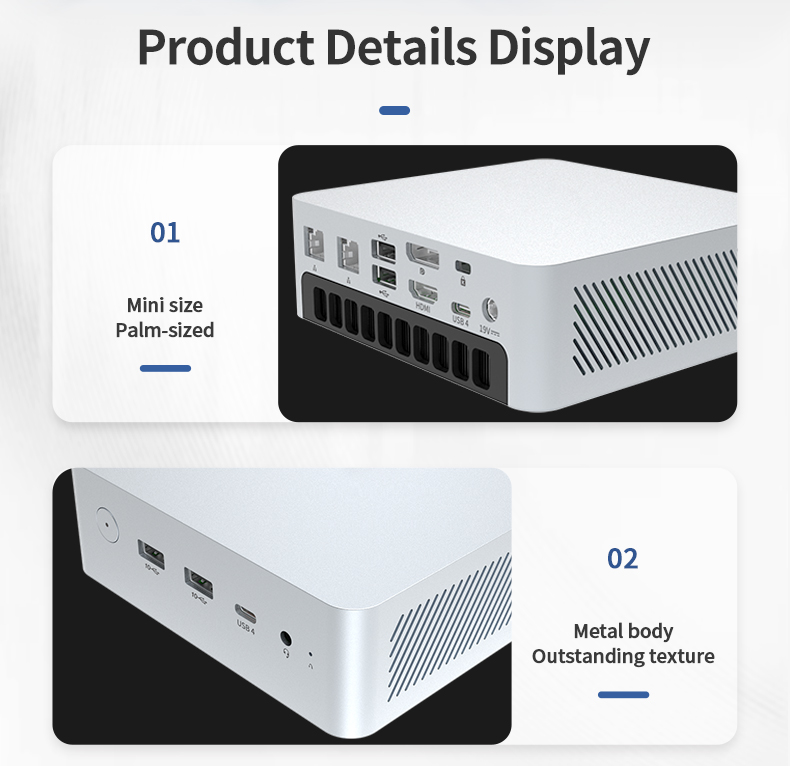

I/O(Rear)DC Jack: 1*DC jack5.5*2.5
HDMl:1*Standard HDMI2.1 TMDS 4K60HZ--CEC
DP:1*DP1.4---DP++ 4K144HZ
Type_C:1*USB4.0--PD3.0
Type_A: 2*USB2.0(Data)
RJ45:2*2.5GLAN
l/O(Interior)FAN: 1CPU / FAN: 1*System(for DDR and SSD)
Indicator lightPower LED
ButtonPower Key: On Front Panel/Reset Hole: 1
WIFIWlFl chip model: M.2 2230
WlFl Standard: supportWiFi 802.11b/g/n/ac/ax
WIFl Frequency: 2.4G/5G
BluetoothSupportVersion 4.2/5.1/5.2
Network2.5G Lan:2*2.5GLAN
Modemn Standbysupport
OSSystem:Windowsl1/Linux TBD (Support multi-language)
AdaptorINPUT:19V6.32A_120.08W
BIOS/ECUl spec: Customization
MaterialPlastic
Weight~550g
PCBA Size125mm*125mm

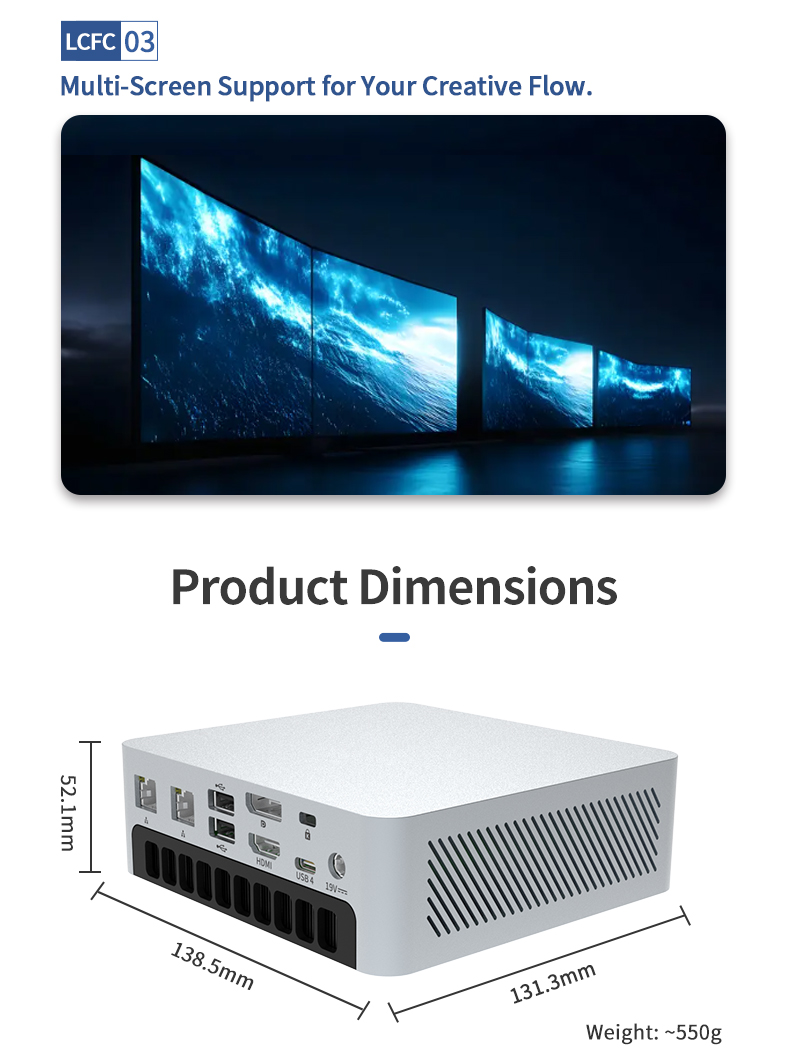

Size138.5mm*131.3mm*52.1mm
