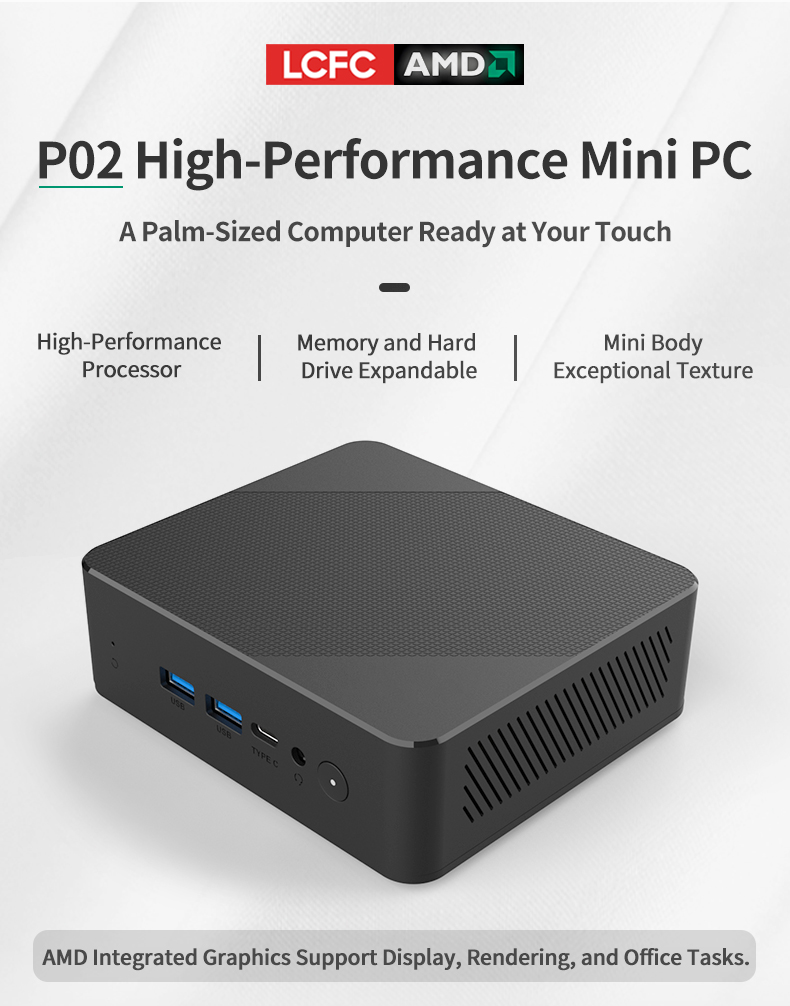

LCFC-P02 High-Performance Mini PC
LCFC-P02 High-Performance Mini PC

LCFC-P02 High-Performance Mini PC

LCFC-P02 is a computing device that balances high performance, expandability, and portability, specifically designed for modern multi-scenario applications. It meets the needs for efficient data processing, smooth audio-visual experiences, and flexible device connectivity, delivering excellent usability through advanced hardware architecture, rich interface configurations, and multi-system compatibility.The device features an engineering plastic casing, ensuring structural strength while controlling weight and maintaining a compact size. It supports VESA wall mounting and Kensington lock for security. Equipped with an AMD processor and integrated graphics, it enables 4K decoding and multi-task handling, with storage expandable to 32GB RAM + dual drives.Suitable for daily office work, educational terminals, home entertainment, and industrial automation control, it achieves efficient multi-scenario applications with balanced configurations.

Technical Reference

Product Details

Accessories

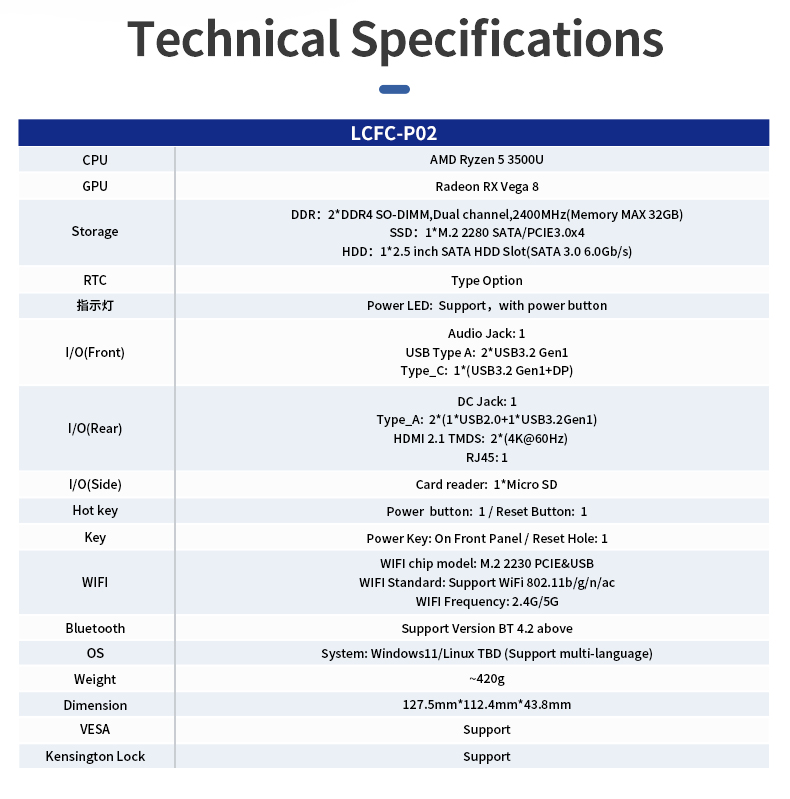

LCFC-P02 High-Performance Mini PC
ProjectDescribe
CPUAMD Ryzen 5 3500U
GPURadeon RX Vega 8
StorageDDR:2*DDR4 SO-DIMM,Dual channel,2400MHz(Memory MAX 32GB)SSD:1*M.2 2280 SATA/PCIE3.0x4HDD:1*2.5 inch SATA HDD Slot(SATA3.0 6.0Gb/s)
RTCType option
Indicated lightPower LED: support, with power button

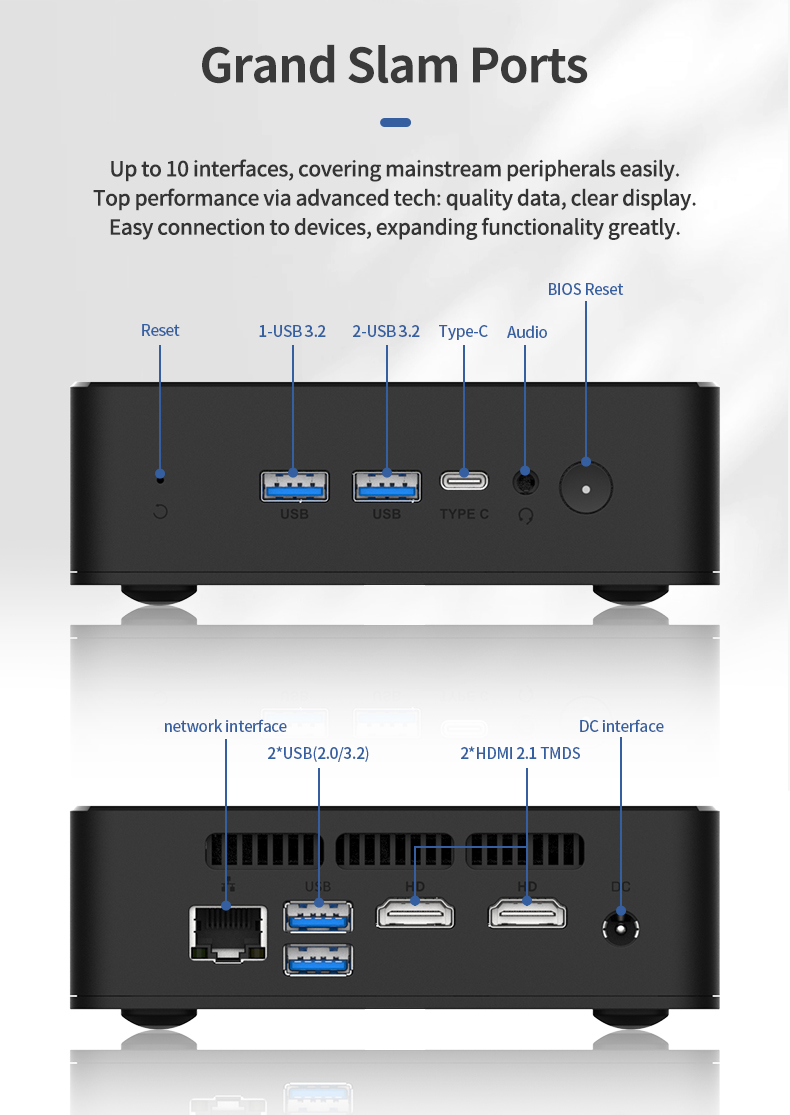

I/O(Front)Audio Jack: 1
USBType A:2*USB3.2 Gen1
Type_C:1*(UsB3.2 Gen1+DP)
I/O(Rear)DC Jack: 1
Type_A:2*(1*USB2.0+1*USB3.2Gen1)
HDMI 2.1 TMDS: 2*(4K@60Hz)
RJ45:1
l/O(Interior)Card reader: 1*Micro SD
Hot keyPower button: 1/Reset Button:1
KeyPower Key: On Front Panel/Reset Hole: 1
WIFIWlFl chip model: M.2 2230 PCIE&USB
WlFl Standard: supportWiFi 802.11b/g/n/ac
WIFl Frequency: 2.4G/5G
BluetoothSupport Version BT 4.2 above
OSSystem: Windowsl1/Linux TBD(Support multi-language)
Weight~420g
OSSystem:Windowsl1/Linux TBD (Support multi-language)

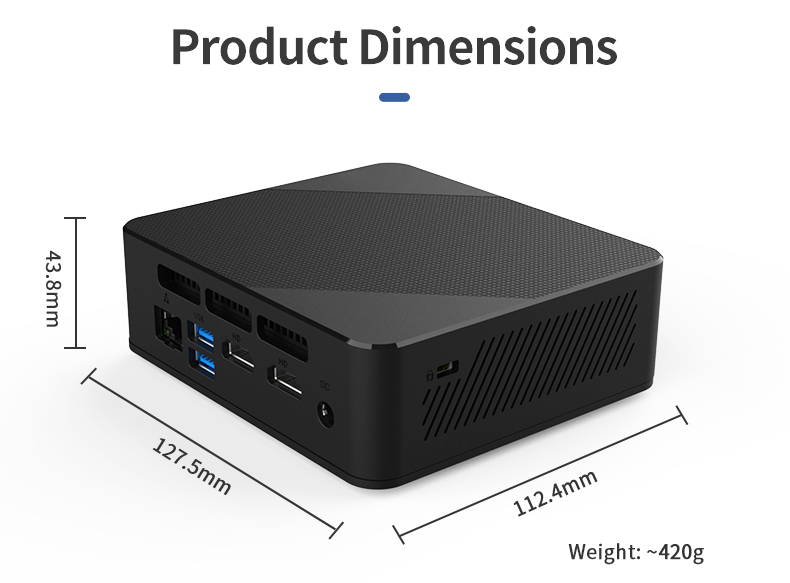

Dimension127.5mm*112.4mm*43.8mm
VESAsupport
Kensington Locksupport

APPLICATION

Intelligent terminals are a type of embedded computer system equipment equipped with NVIDIAJetson series core modules, which have the characteristics of small size, high performance, low power consumption, and strong stability.
