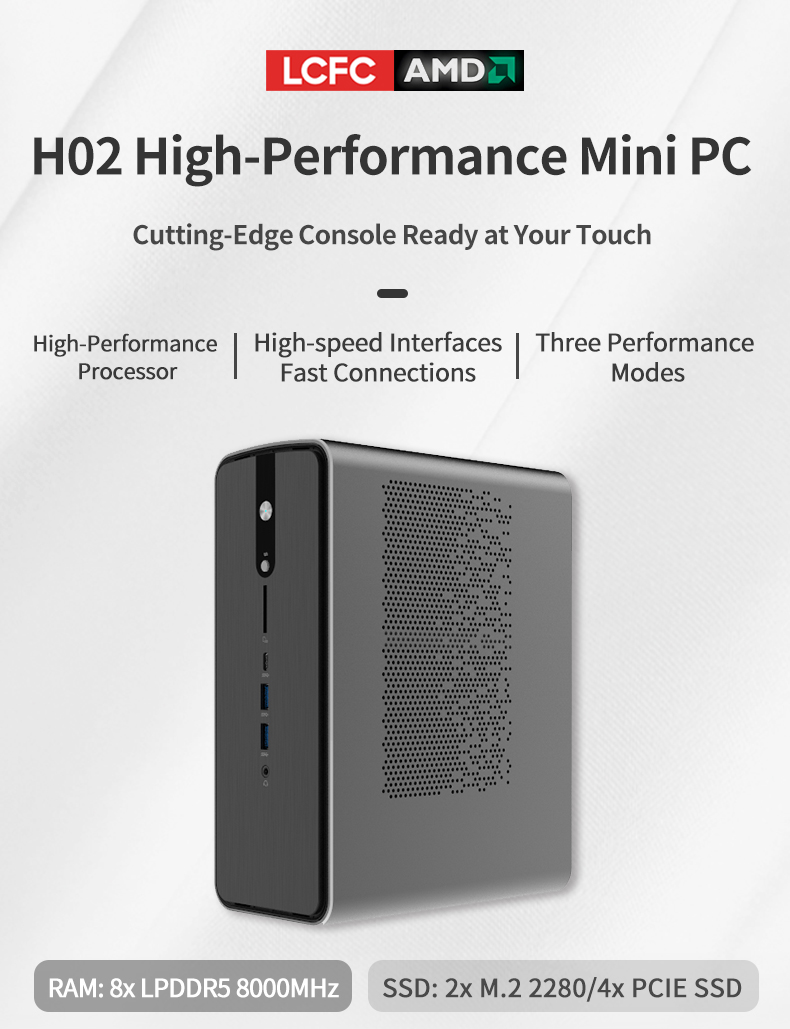

LCFC-H02 High-Performance Mini PC
 LCFC-H02 High-Performance Mini PC

LCFC-H02 High-Performance Mini PC

LCFC-H02 is a high-performance and versatile mini PC. In terms of hardware, its CPU offers multiple powerful options to meet the computing performance needs of different users. The integrated GPU enables efficient completion of graphics processing tasks. With a rich storage configuration, including 8-channel LPDDR5 memory at 8000MHz (supporting up to LPDDR5-128GB) and 2×M.2 2280 PCIE×4 SSDs, it ensures fast read/write speeds for handling large-volume data processing. A key highlight is the performance switch, allowing users to flexibly toggle among 120W Performance Mode, 85W Balanced Mode, and 55W Silent Mode to balance high-performance output with energy efficiency and silent operation.

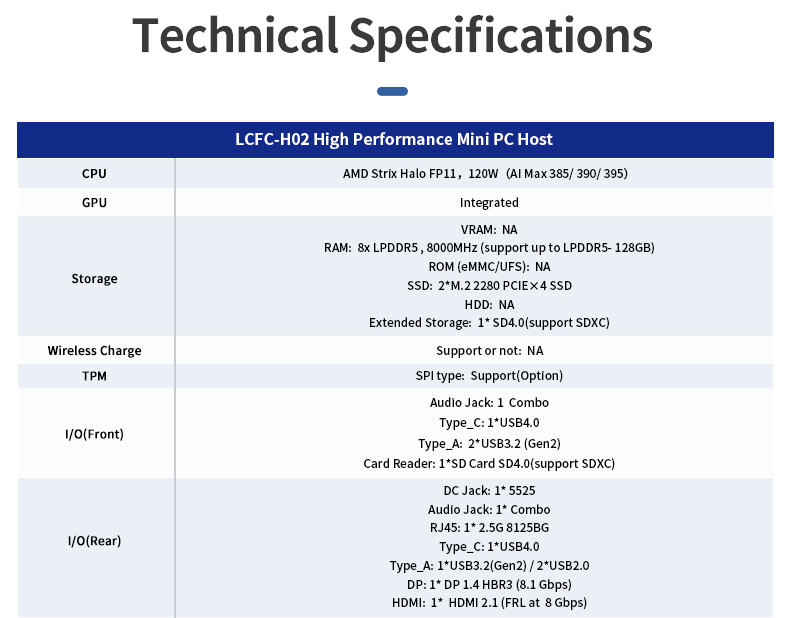

Technical Reference

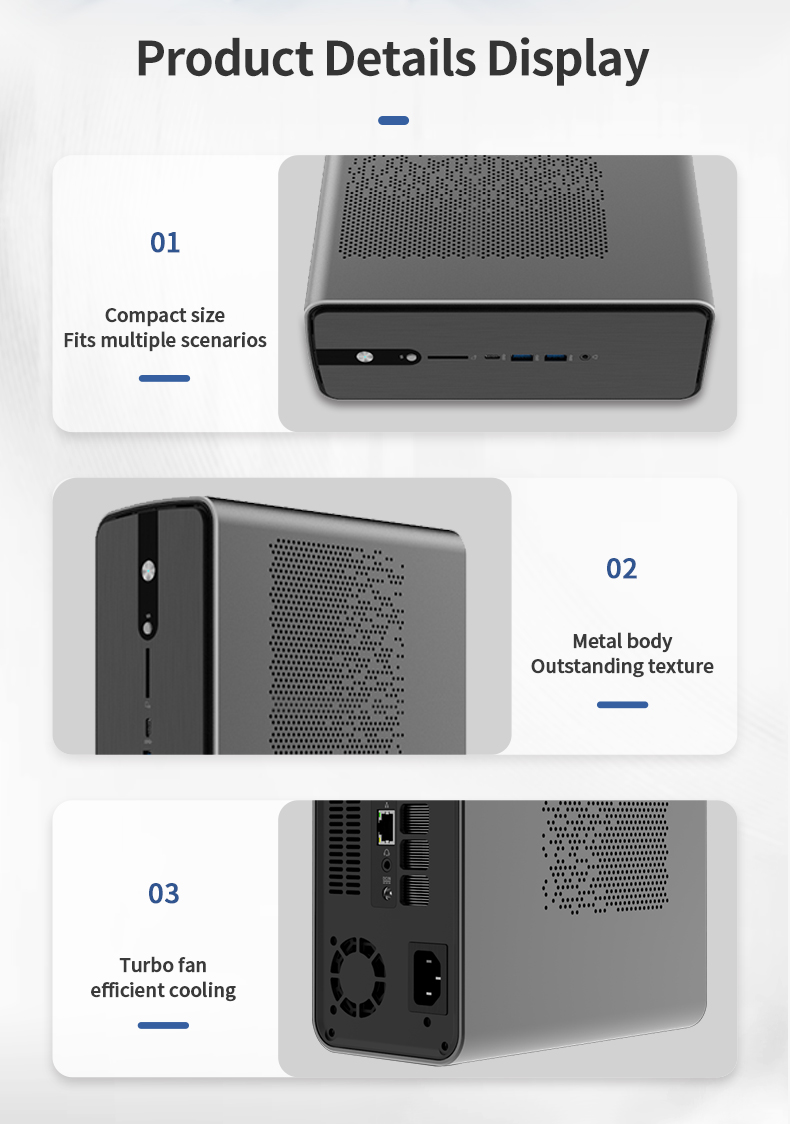

Product Details

Accessories

LCFC-H02 High-Performance Mini PC
ProjectDescribe
CPUAMD Strix Halo FP11,120W(AlMax385/390/395)
GPUIntegrated
StorageVRAM: NA
RAM:8xLPDDR5,8000MHz(support upto LPDDR5-128GB)
ROM (eMMC/UFS): NA
SSD: 2*M.2 2280 PCIEx4 SSD
HDD:NA
Extended storage: 1* SD4.0(support SDXC)
Wireless ChargeSupport or not: NA
TPMSPl type: support(option)

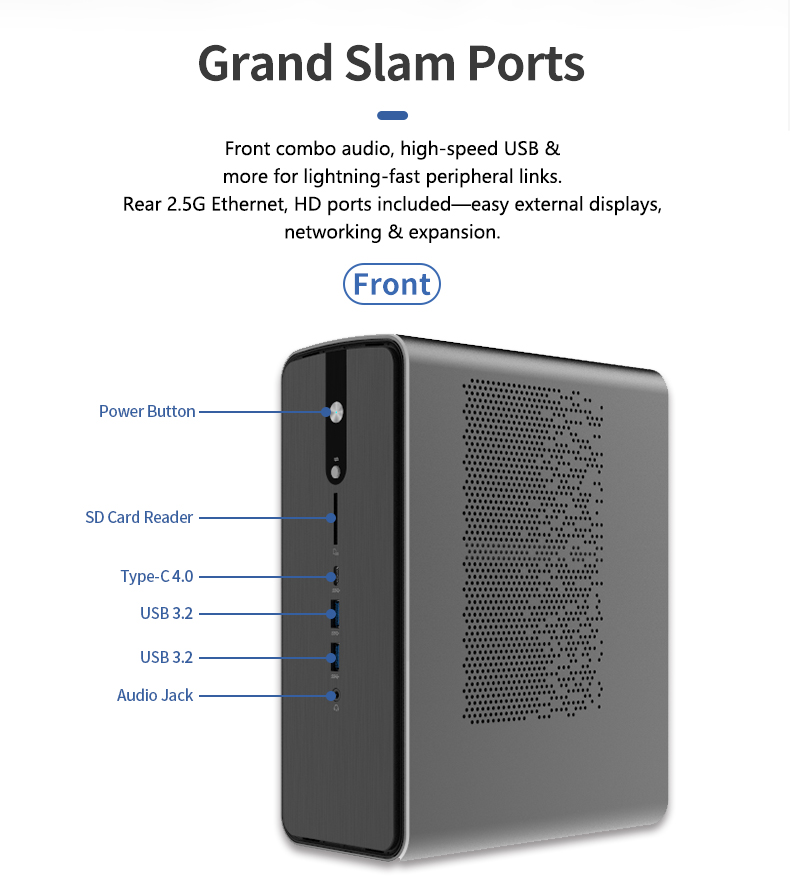

I/O(Front)Audio Jack:1 Combo
Type_C: 1*USB4.0
Type_A: 2*USB3.2(Gen2)
Card Reader: 1*SD Card SD4.0(support SDXC)

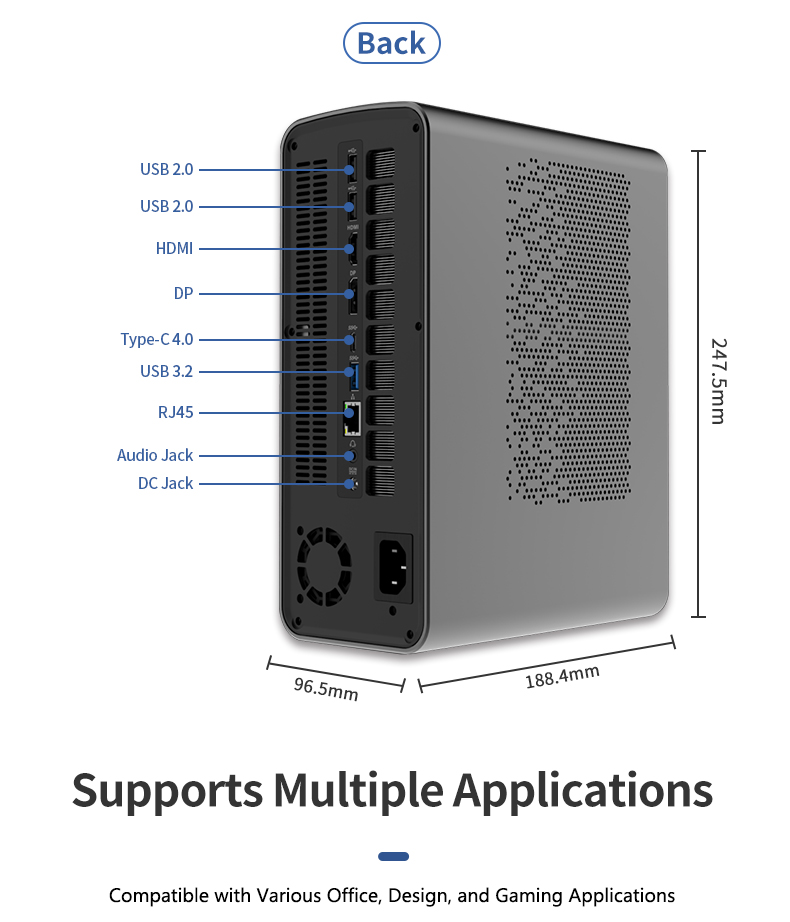

I/O(Rear)DC Jack: 1*5525
Audio Jack: 1* ComboRJ45: 1* 2.5G 8125BG
Type_C:1*USB4.0
Type_A: 1*USB3.2(Gen2)/2*USB2.0
DP:1* DP 1.4 HBR3 (8.1 Gbps)
HDMI: 1* HDMI 2.1 (FRL at 8 Gbps)

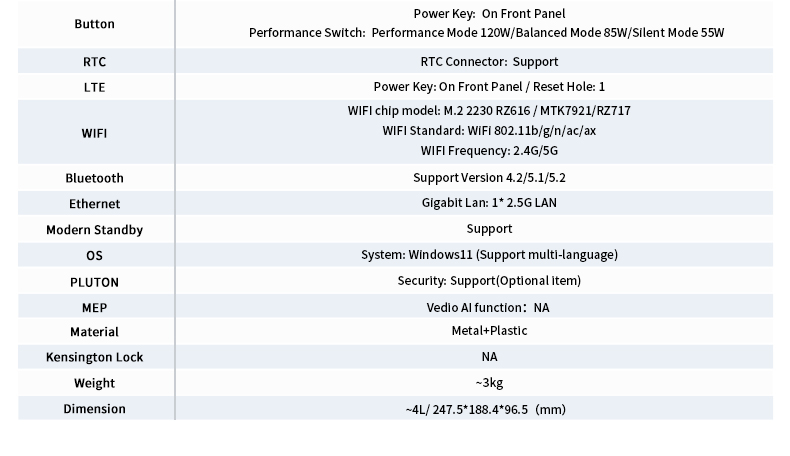

ButtonPower Key: On Front Panel
Performance Switch: Performance Mode 120W/Balanced Mode 85W /Silent Mode 55W
RTCRTC Connector: support
LTEPower Key:OnFront Panel/Reset Hole: 1
WIFIWIFI chip model: M.2 2230 RZ616/MTK7921/RZ717
WlFl Standard: WiFi 802.11b/g/n/ac/ax
WlFl Frequency:2.4G/5G
BluetoothSupportVersion 4.2/5.1/5.2
EthernetGigabit Lan: 1* 2.5G LAN
Modern Standbysupport
OSSystem:Windows11 (Support multi-language)
PLUTONSecurity: support(Optional item)
MEPVedio Al function: NA
MaterialMetal+Plastic
Kensington LockNA
Weight~3kg
Dimension~4L/247.5*188.4*96.5(mm)
