Denglin-AI Edge Computing Node

Denglin AI Edge Computing Node is a product designed for edge computing application scenarios. It features expandable computing power, small size, multi-signal access, strong environmental adaptability, easy maintenance, and support for cloud-edge collaboration, meeting application needs in complex environments such as security, campuses, communities, industrial parks, and supermarkets.

Technical Reference

Product Details

Accessories

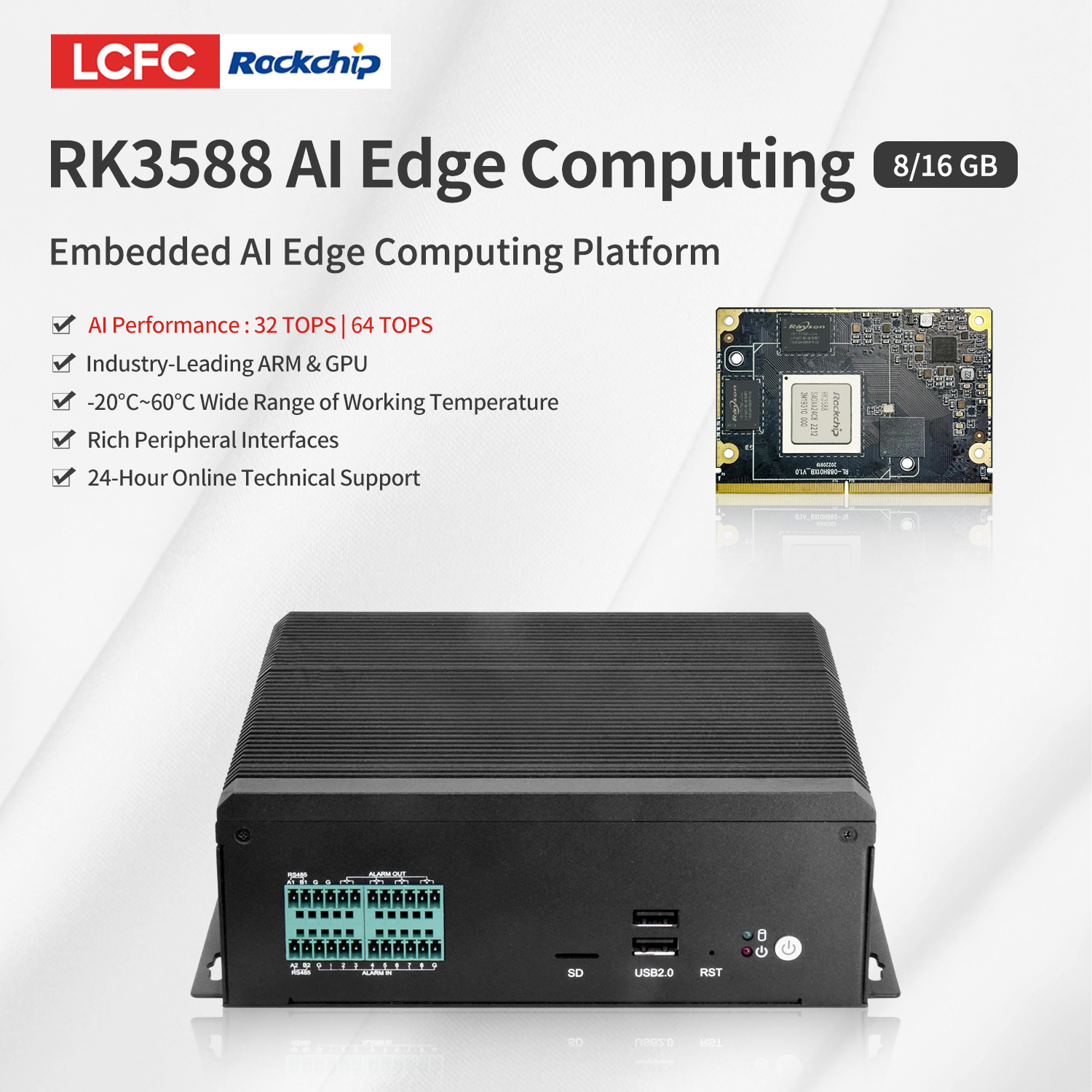

RK3588 AI Edge Computing
ProjectDescribe
CPURockchip RK3588 Quad Cores A76+Quad Cores A55
NPU6TOPS@INT8

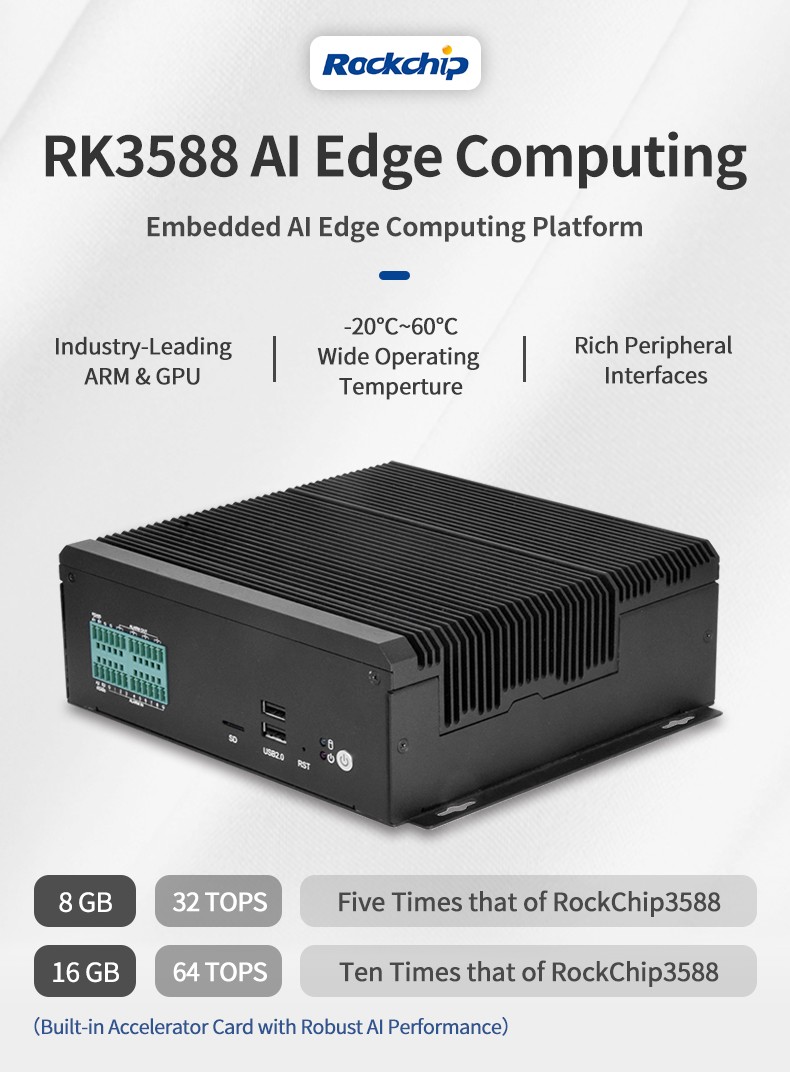

Accelerator cardBuilt-in 32T Accelerator:
 Supports 32 Tops@INT8 / 8 TFLOPS@FP16 / 2 TFLOPS@FP32 Performance
 Supports 8GB Video Memory Support
Built-in 64T Accelerator:
Supports 64 Tops@INT8 / 16 TFLOPS@FP16 / 4 TFLOPS@FP32
Supports 16GB video memory
Memory8GB (2*4GB), with a maximum expandability of 16GB (2*8GB)
Hard disk64GB eMMC, expandable with M.2 SSD

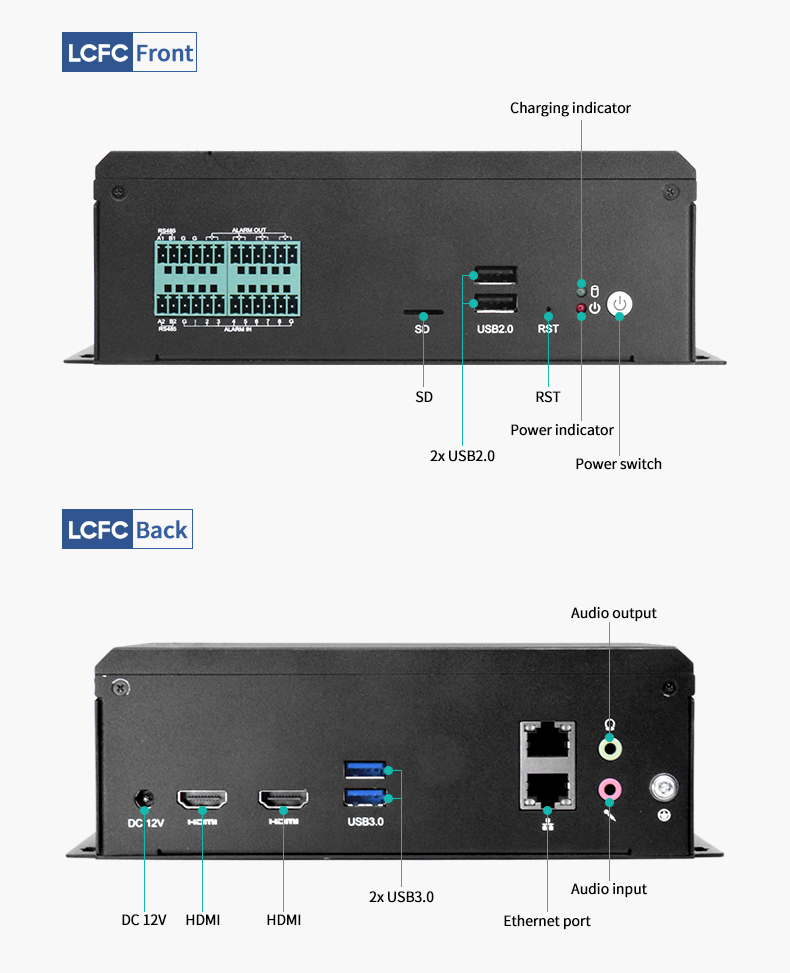

I/O2*HDMI
2*USB2.0+2*USB3.0
2*RS232
2*RS485
1*SIM Card slot
1*TF
3.5mm Mic in+3.5mm Line out
2*Gigabit network
Alarm: 8*in+4*out
Encryption: ATSHA204A
CommunicationWifi+BT
Power supplyDC 12V

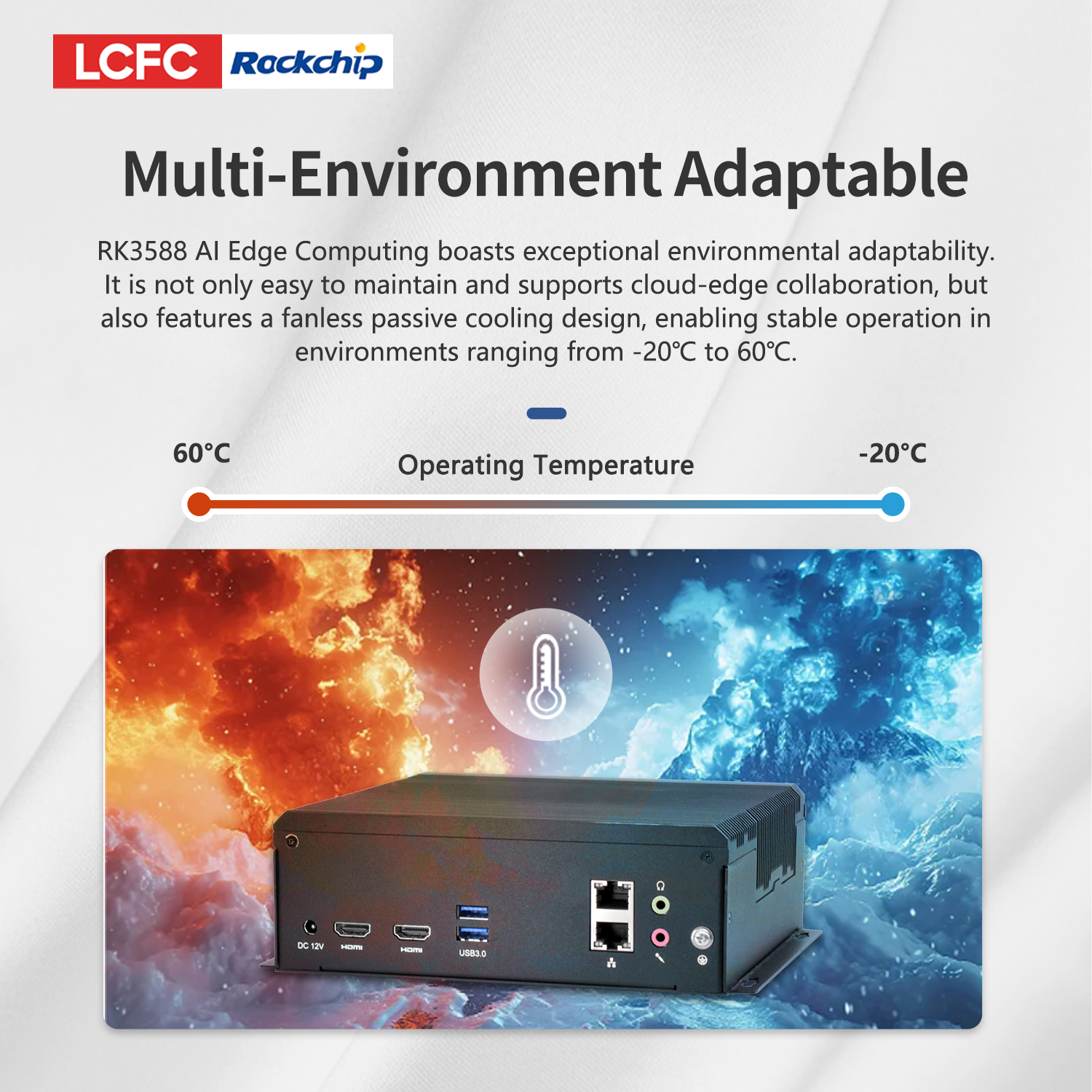

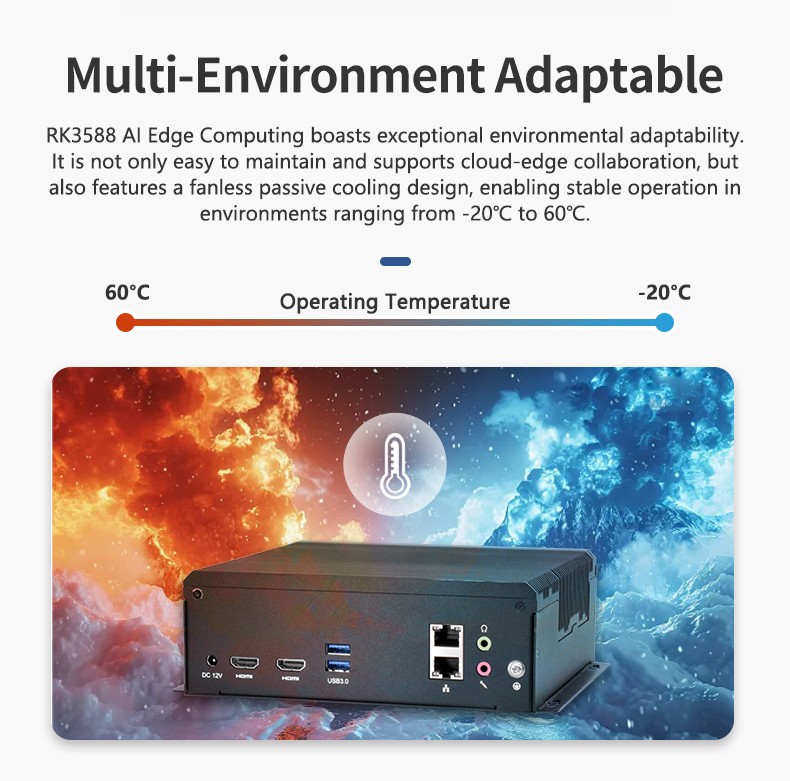

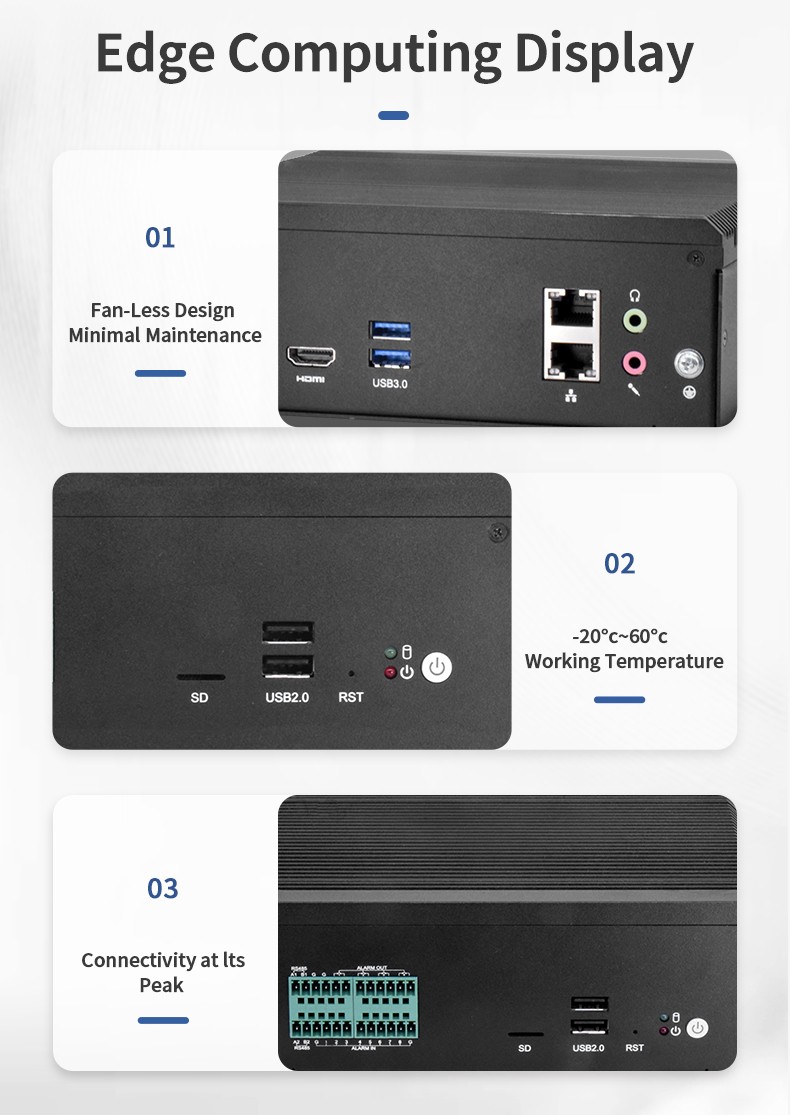

Operating temperature-20°C~60°C

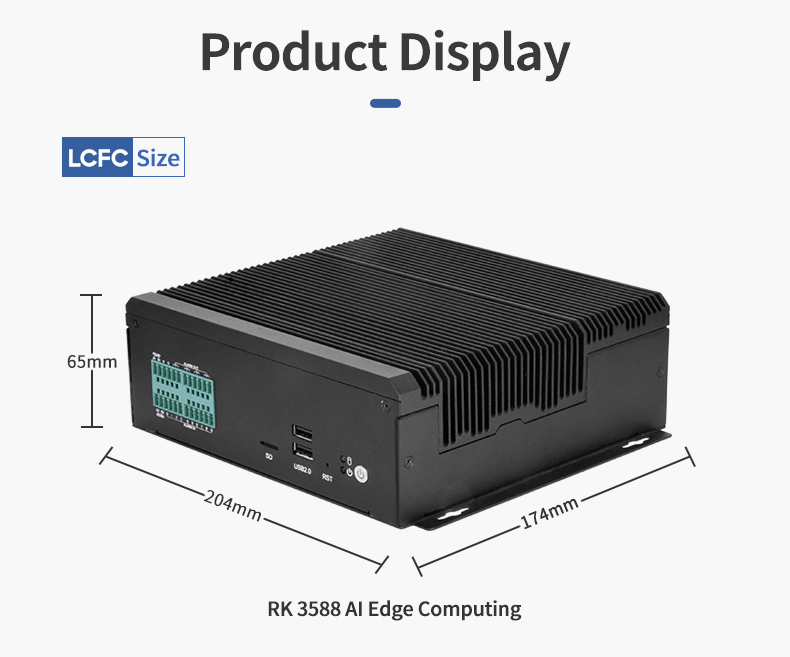

Size204mm*174mm*65mm
