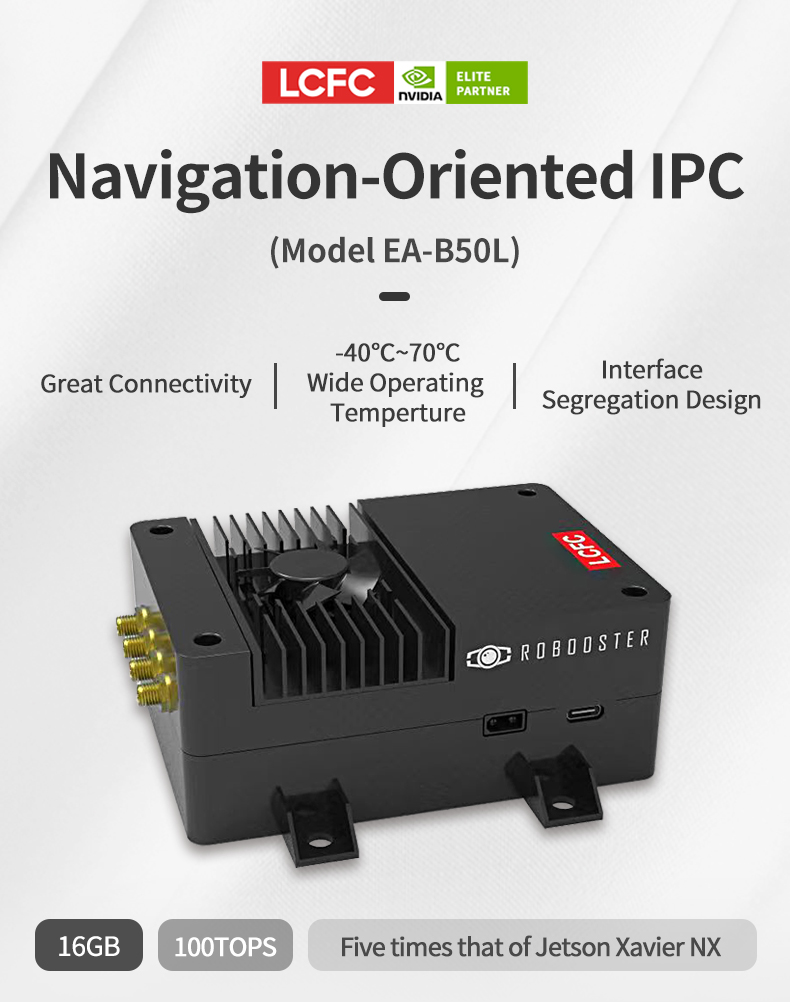

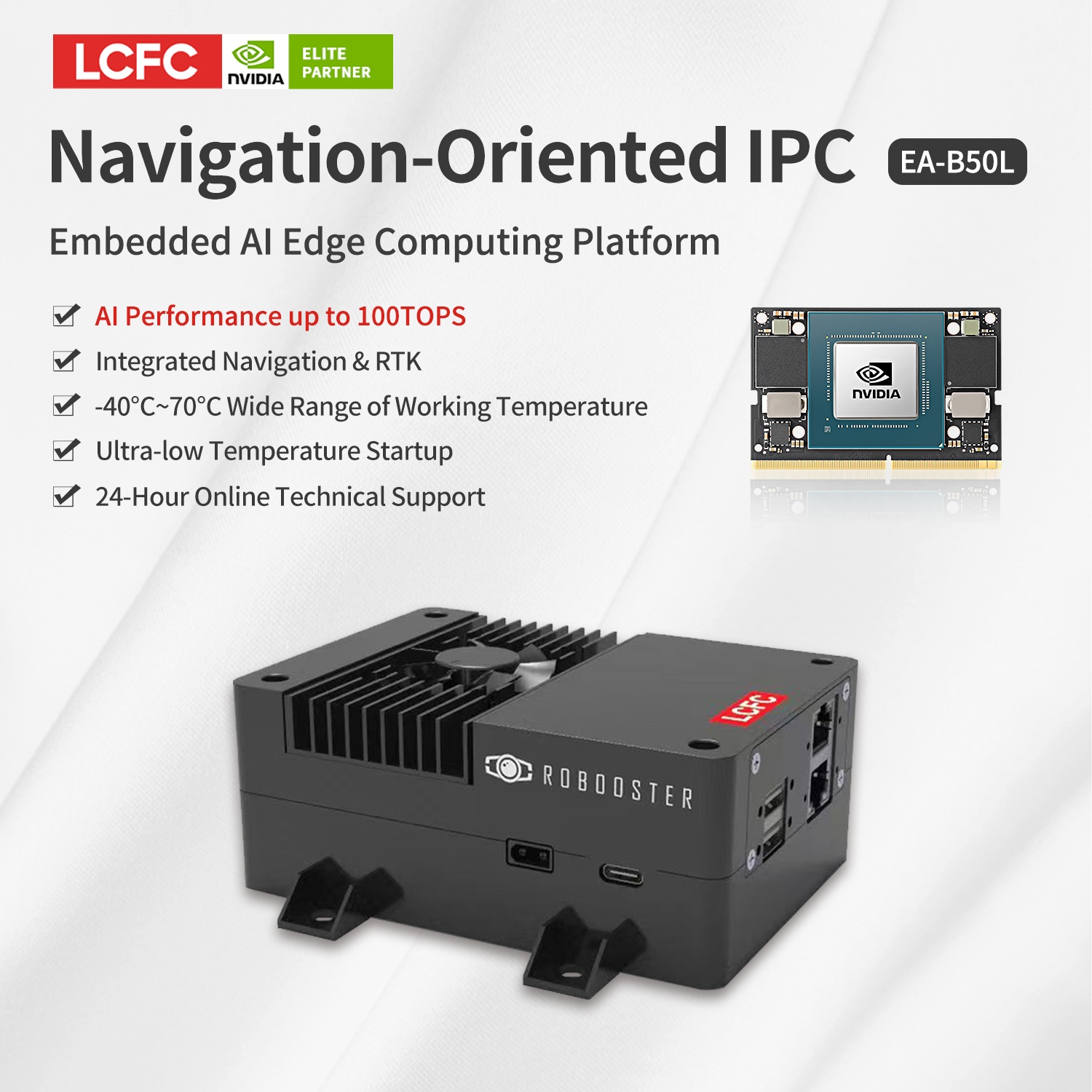

Navigation-Oriented IPC (EA-B50L)

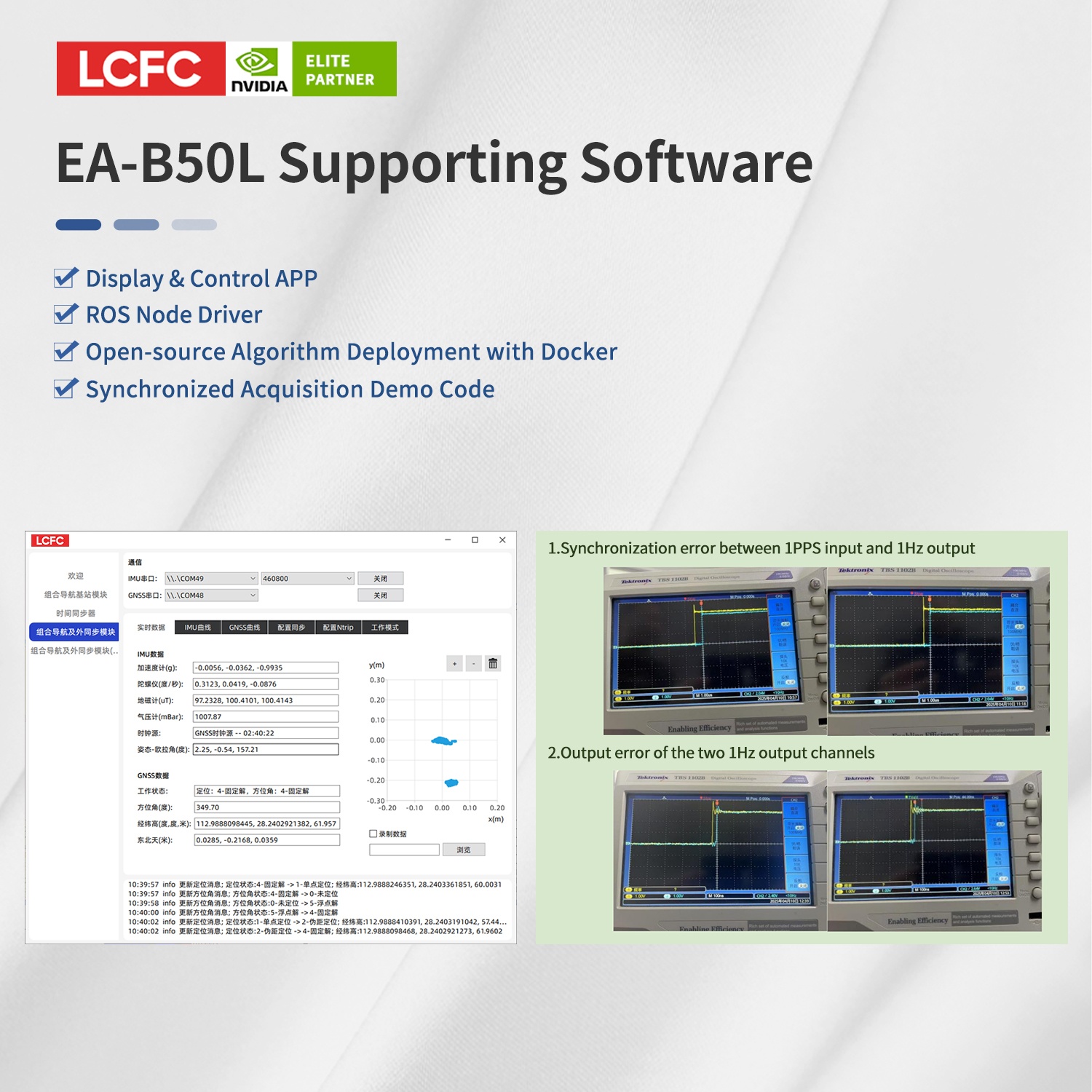

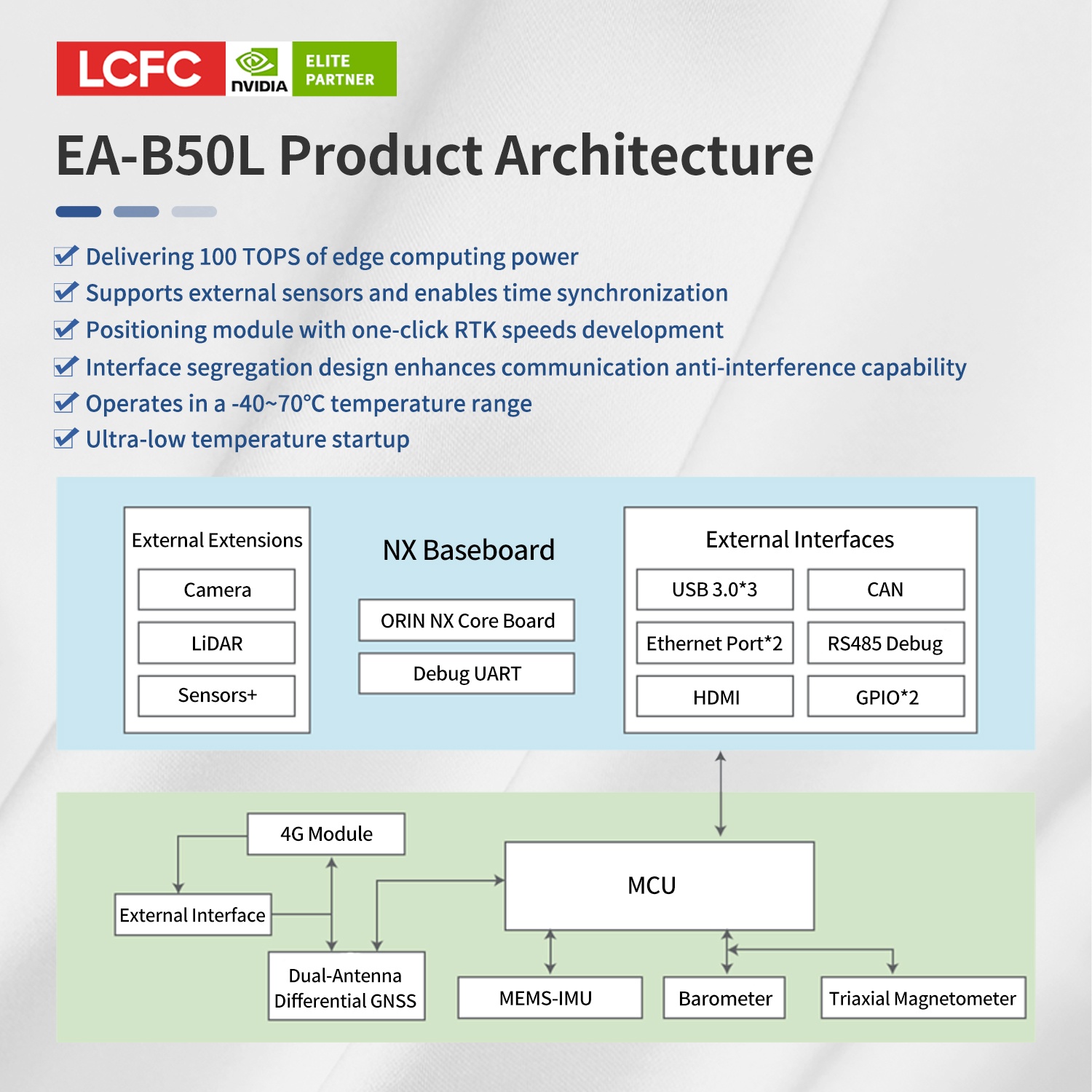

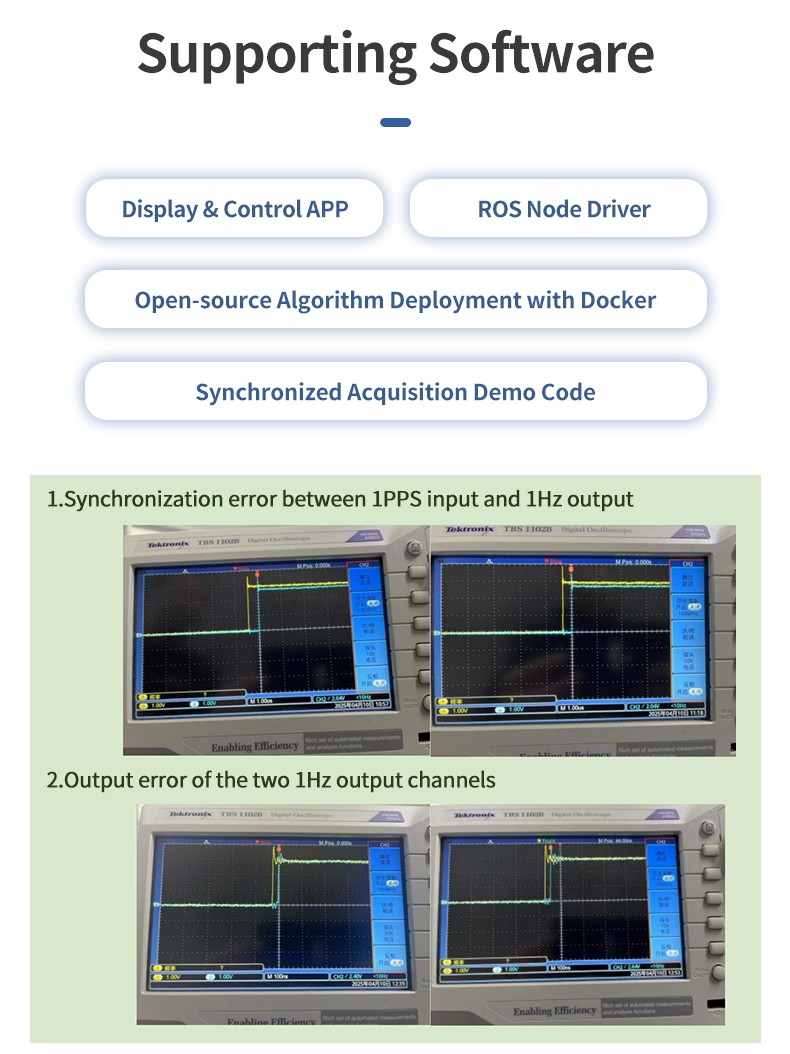

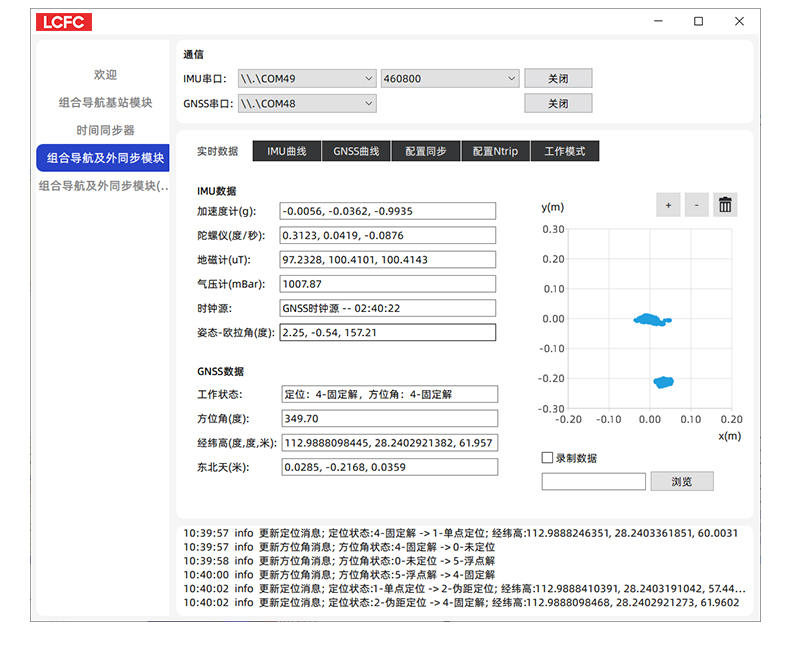

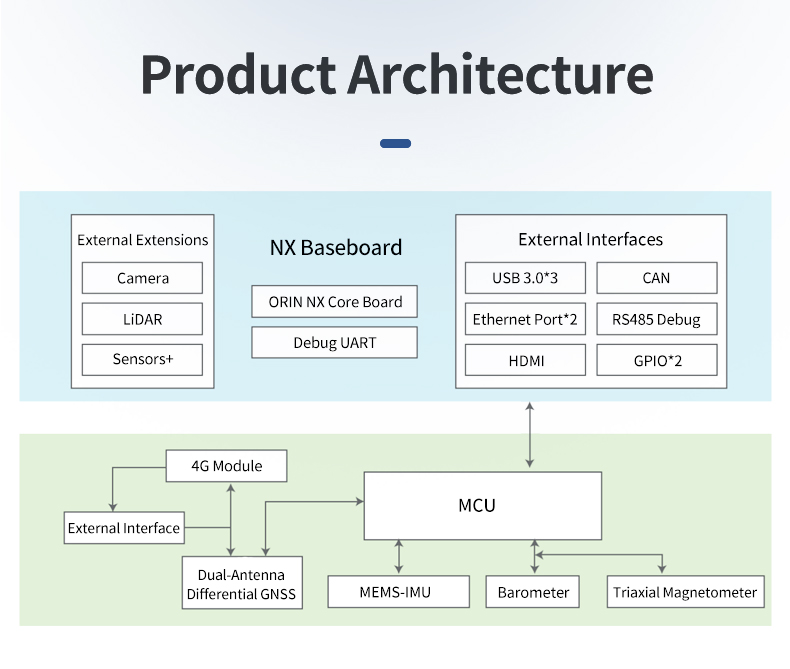

The RS NlPc Series is an industrial-grade navigation computer powered by the NViDlA Jetson Orin NX module, integrating an8-core ARM v8.2 64-bit CPU and an NviDlA Ampere GPU (1024 CUDA cores + 2 DLAs) for 100 TOPS Al performance, supportingall mainstream neural networks. lt features an integrated dual-antenna GNss (RTK-ready), 3-axis lMU (Gyro/ AccelerometerMagnetometer), Barometer, and UwB ranging (EA-B50L)-all synchronized with 1PPs and capable of generating 4 syncsignals for external sensor triggering. Sensor data is output via ROs nodes for seamless integration. With buit-in 4G (5Goptional), l/0 ports, and expandable wireless modules, the NlPc Series ensures robust connectivity for autonomous mobilityapplications. Choose the optimal model for your mobile robotics or navigation needs.

Technical Reference

Product Details

Accessories


Navigation-Oriented IPc Series (EA-B50L)
Project
Describe
Processor
NVIDIA Jetson Orin NX 16GB
AI Performance
100 Tops (sparse INT8)
CPU
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU, 2MB L2 + 4MB L3
GPU
1024 NVIDIA® CUDA® Cores & 32 Tensor Cores
AI Accelerator
2x NVDLA (Max Operating Frequency: 614 MHz, 20 TOPS each (Sparse INT8))
Memory
16GB 128-bit LPDDR5 DRAM
Storage Device
M.2 NVME SSD(256)
I/O configurationHDMIHDMI 2.0 x 1
EthernetGigable Ethernet*2
USBUSB3.0 Type-A*2 | USB2.0 Type-C*1
COMCAN *1 DB9

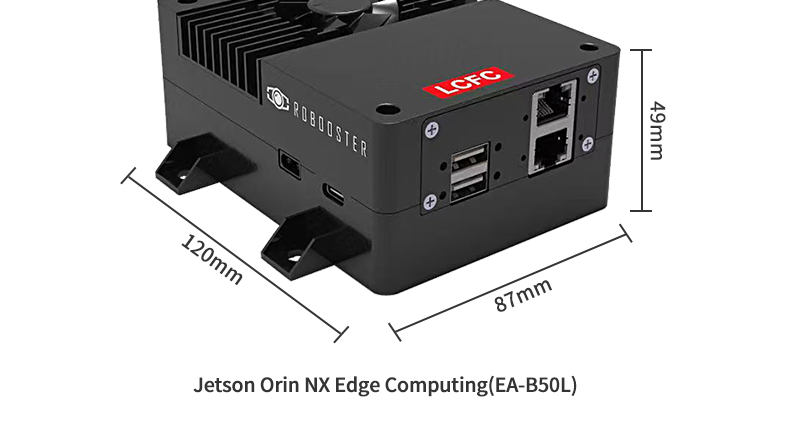

MechanicalSize(L*W*D,mm)120*87*49
Weight(g)＜350g

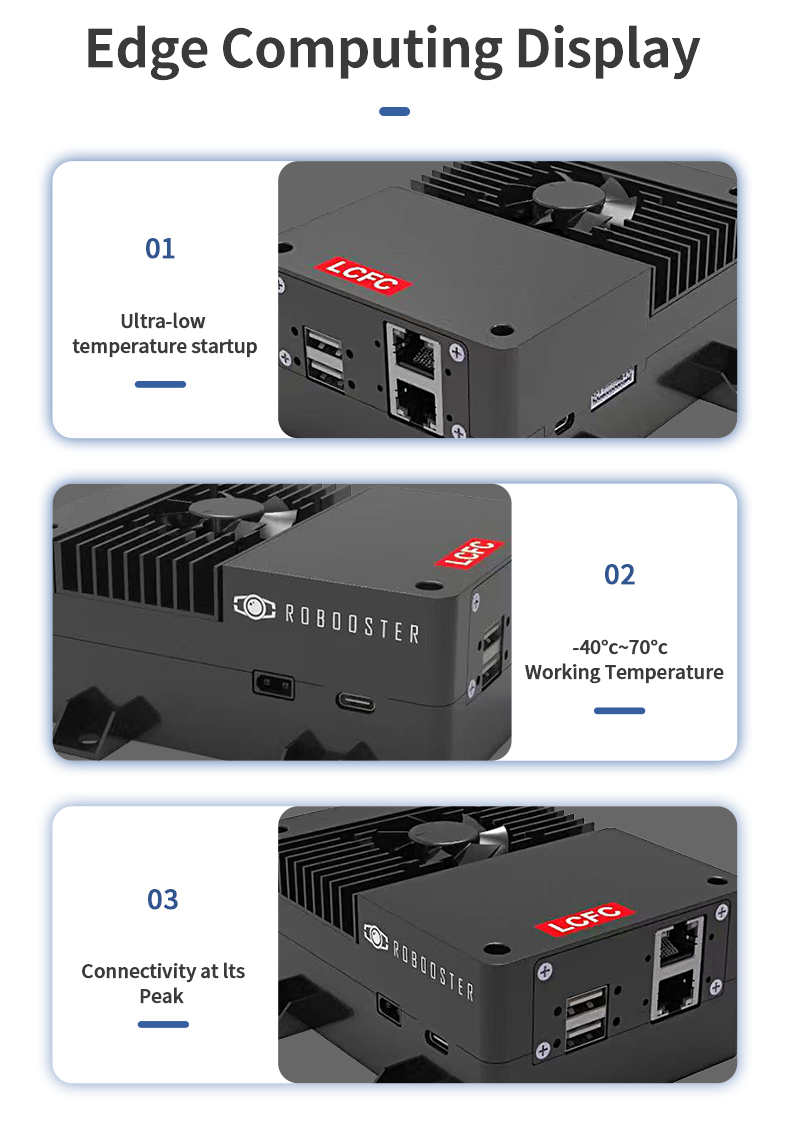

Operating AmbientOperation Temperature-40℃~70℃
Storage Temperature-40℃~70℃
Humidity5~95%@40°℃,w non-condensing

Previous: Navigation-Oriented IPC (EA-B50E)

Next: Denglin-AI Edge Computing Node

APPLICATION

Intelligent terminals are a type of embedded computer system equipment equipped with NVIDIAJetson series core modules, which have the characteristics of small size, high performance, low power consumption, and strong stability.
