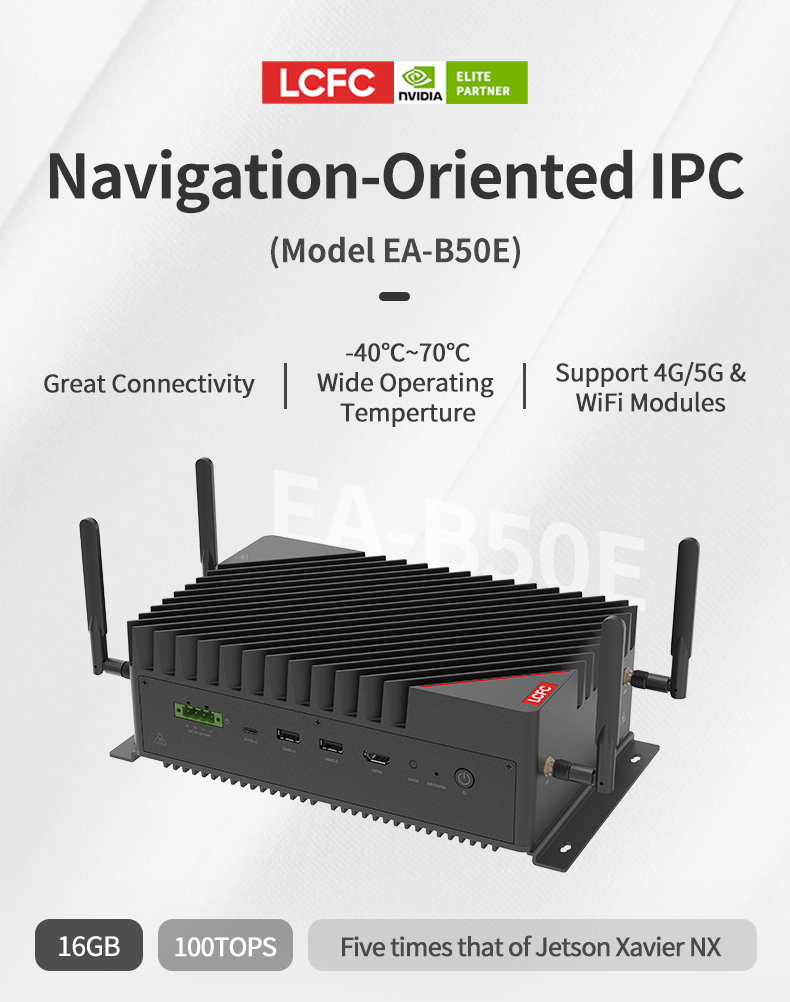

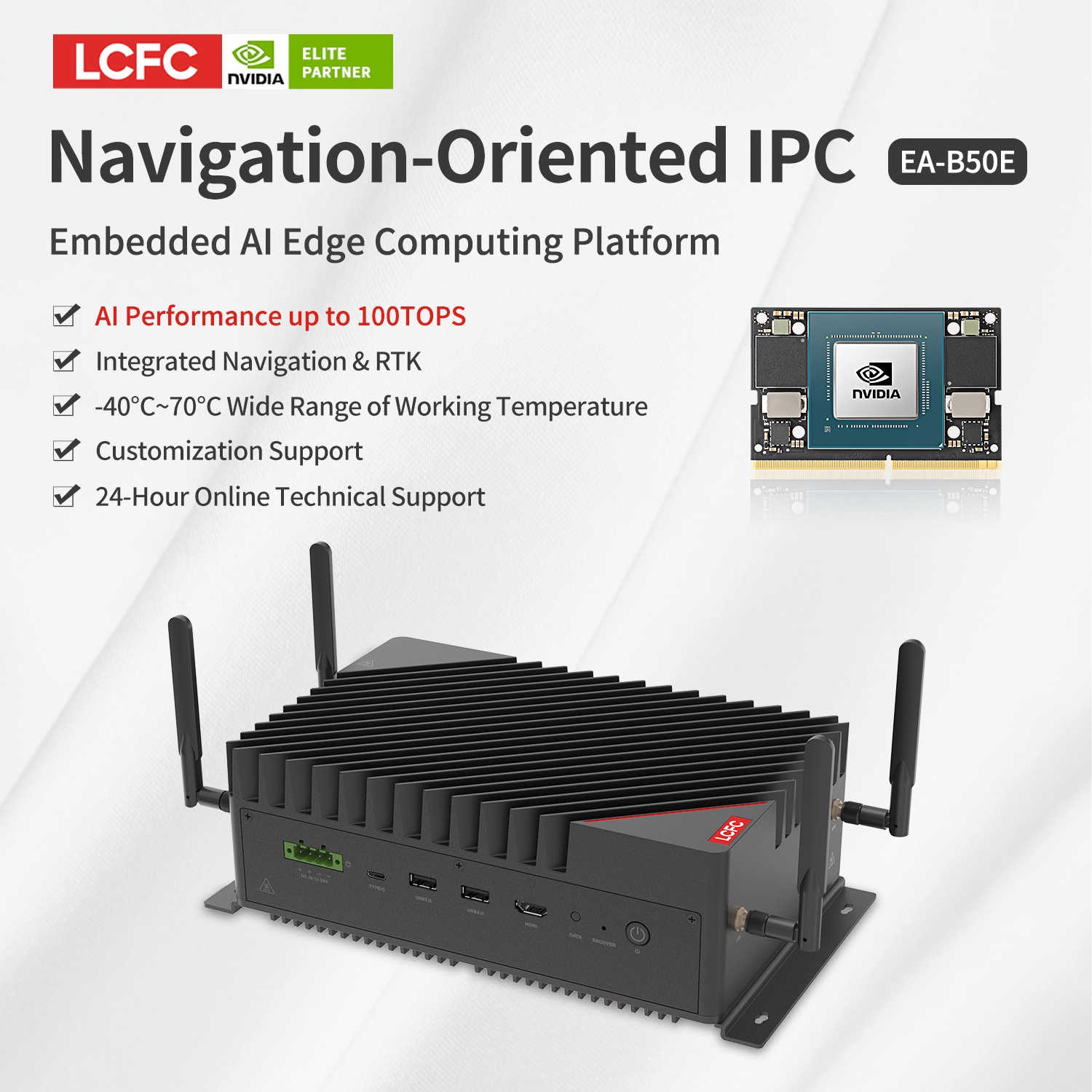

Navigation-Oriented IPC (EA-B50E)

The RS NlPc Series is an industrial-grade navigation computer powered by the NViDlA Jetson Orin NX module, integrating an8-core ARM v8.2 64-bit CPU and an NviDlA Ampere GPU (1024 CUDA cores + 2 DLAs) for 100 TOPS Al performance, supportingall mainstream neural networks. lt features an integrated dual-antenna GNss (RTK-ready), 3-axis lMU (Gyro/ AccelerometerMagnetometer), Barometer, and UwB ranging (N1-Vc50L)-all synchronized with 1PPs and capable of generating 4 syncsignals for external sensor triggering. Sensor data is output via ROs nodes for seamless integration. With buit-in 4G (5Goptional), l/0 ports, and expandable wireless modules, the NlPc Series ensures robust connectivity for autonomous mobilityapplications. Choose the optimal model for your mobile robotics or navigation needs.

Technical Reference

Product Details

Accessories




Navigation-Oriented IPC Series (EA-B50E)
Project
Describe
Processor
NVIDIA Jetson Orin NX 16GB
AI Performance
100 Tops (sparse INT8)
CPU
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU, 2MB L2 + 4MB L3
GPU
1024 NVIDIA® CUDA® Cores & 32 Tensor Cores
AI Accelerator
2x NVDLA (Max Operating Frequency: 614 MHz, 20 TOPS each (Sparse INT8))
Memory
16GB 128-bit LPDDR5 DRAM
Storage Device
M.2 NVME SSD(256)
I/O ConfigurationHDMIHDMI
EthernetGigable Ethernet*2
USBUSB3.0 Type-A*1|USB2.0 Type-C*1
GMSLN/A
COM(NX)CAN*1RS232/422/485/*2
COM-Extend PortSync.Pulse4IRS232/TTLGPRMC
GPSSupport
4G4G CAT1 Module
Function KeyRecoveryRecovery Button*1
ON/OFFPower Button*1
OSROS CompatibilityUbuntu 20.04/Supprot
GNSSSignal CompatibilityBD/GPS/GLONASS/GALILEO/QZSS
Signale-Point PostioningHorizontal: 1.5m/Vertical: 2.5m
DGPS(RMS)Horizontal: 0.4m/Vertical: 0.8m
RTK(RMS)Horizontal: 0.8cm+1ppm/Nertical: 1.5cm+1ppm
Heading Accuracy0.1°/1m Baseline
Time Accuracy20ns
Velocity Accuracy0.03m/s
IMUGyroscope Range±300°/s
Gyroscope Resolution80 ISB/s
Gyroscope Bias Stability3/h
Accelerometer Range±6g
Accelerometer Resolution4905 LSB/g
Accelerometer Bias Stability0.1 mg
Output Data Rate200hz
BarometerRange10~1200mbar
Resolution0.012mbar(LBS)
Output Data Rate50hz
MagnetometerOutput Data Rate±8 Gauss
Resolution0.0625 mGauss /LSB
Output Data Rate50hz
CertificationShock3G(rms),5~500Hz
Operating AmbientOperation Temperature-20℃~60℃
Storage Temperature-40℃~70℃
Humidity5~95%@40°℃,w non-condensing
IP LevelIP50
Power SupplyVoltage12-36Vdc

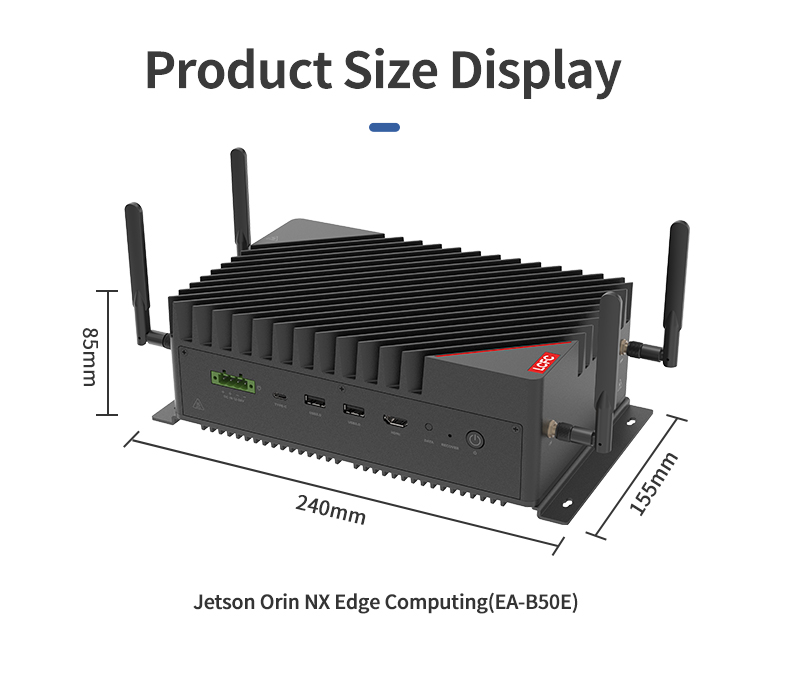

MechanicalSize(L*W*D,mm)260*170*100
Weight(g)3060
